Le GMK NucBox K6 est l'un des plus récents mini PC de la société, conçu pour le multimédia domestique et le streaming. Il est en concurrence directe avec les mini PC Intel NUC et Beelink dans la gamme de prix de 500 $.

Toutes les configurations actuelles sont équipées du processeur AMD Ryzen 7 7840HS Zen 4 avec une carte graphique Radeon 780M intégrée. Les SKUs barebone sont disponibles à partir de 400 $ et jusqu'à 730 $ s'ils sont configurés avec 32 Go de RAM, 1 To de stockage et Windows 11 Pro préinstallé. Les alternatives à la NucBox K6 sont les suivantes Intel NUC 13 Pro, Beelink SER5ou le Geekom A7.

Plus de commentaires sur GMKtec :

Cas

Le châssis est composé de plastique pour le haut et le bas et de métal pour les côtés ou les faces, comme sur les modèles de la génération précédente. La nouveauté de cette année, cependant, ce sont les fentes d'aération tout le long des côtés, comme le montre la photo ci-dessous. Cette approche permet à la partie supérieure de ne pas avoir de trous et d'être plus attrayante sans pour autant réduire le flux d'air ou le refroidissement.

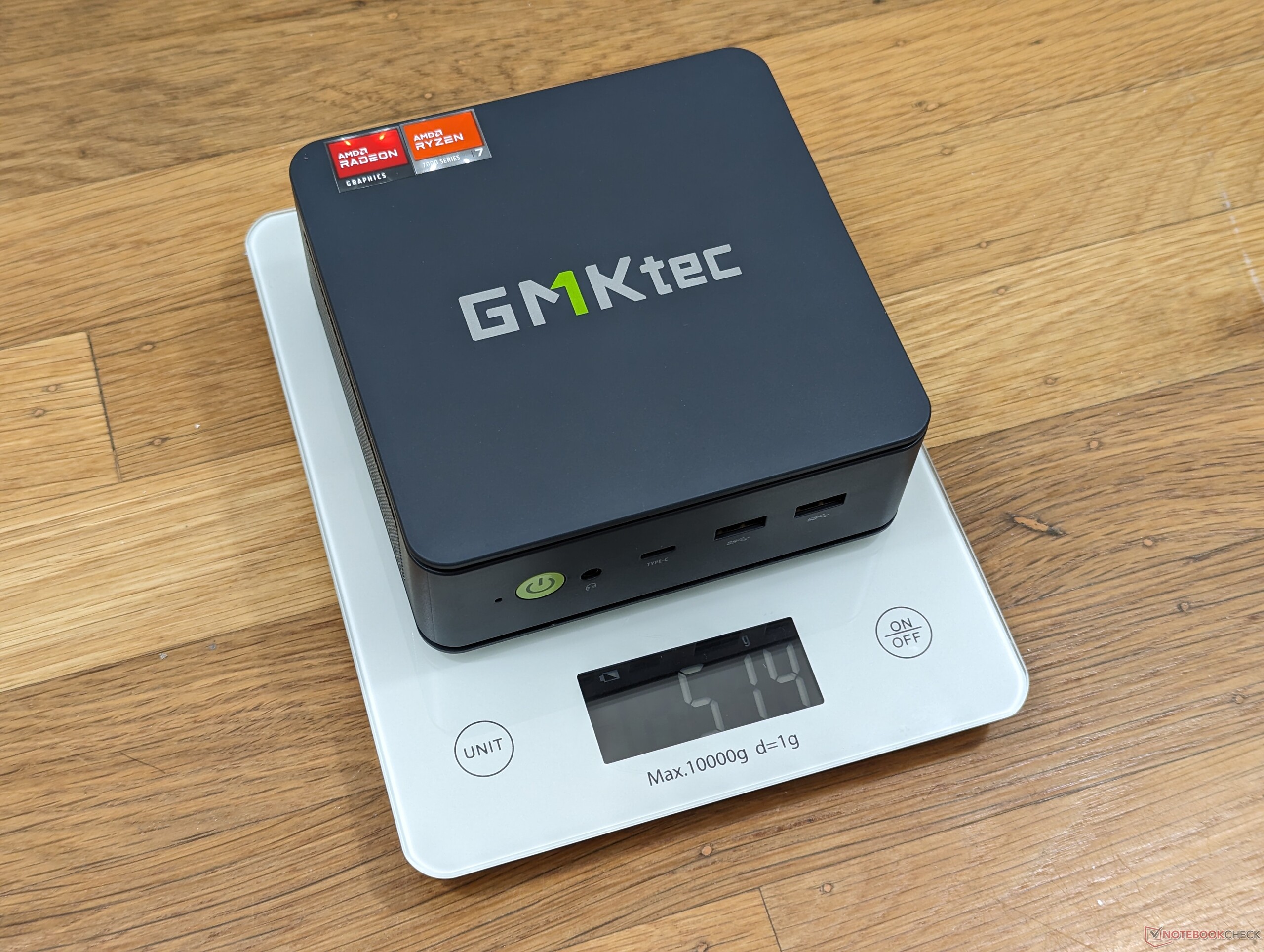

La taille et le poids globaux sont respectivement légèrement plus grands et plus légers que ceux du Intel NUC 13 Pro. Le châssis plus fin utilise moins de métal qu'un Intel NUC, ce qui rend la NucBox K6 légèrement plus susceptible d'être endommagée. Ce n'est pas vraiment un problème, cependant, car nous ne voyons pas beaucoup d'acheteurs malmener le mini PC comme s'il s'agissait d'un ordinateur portable de voyage.

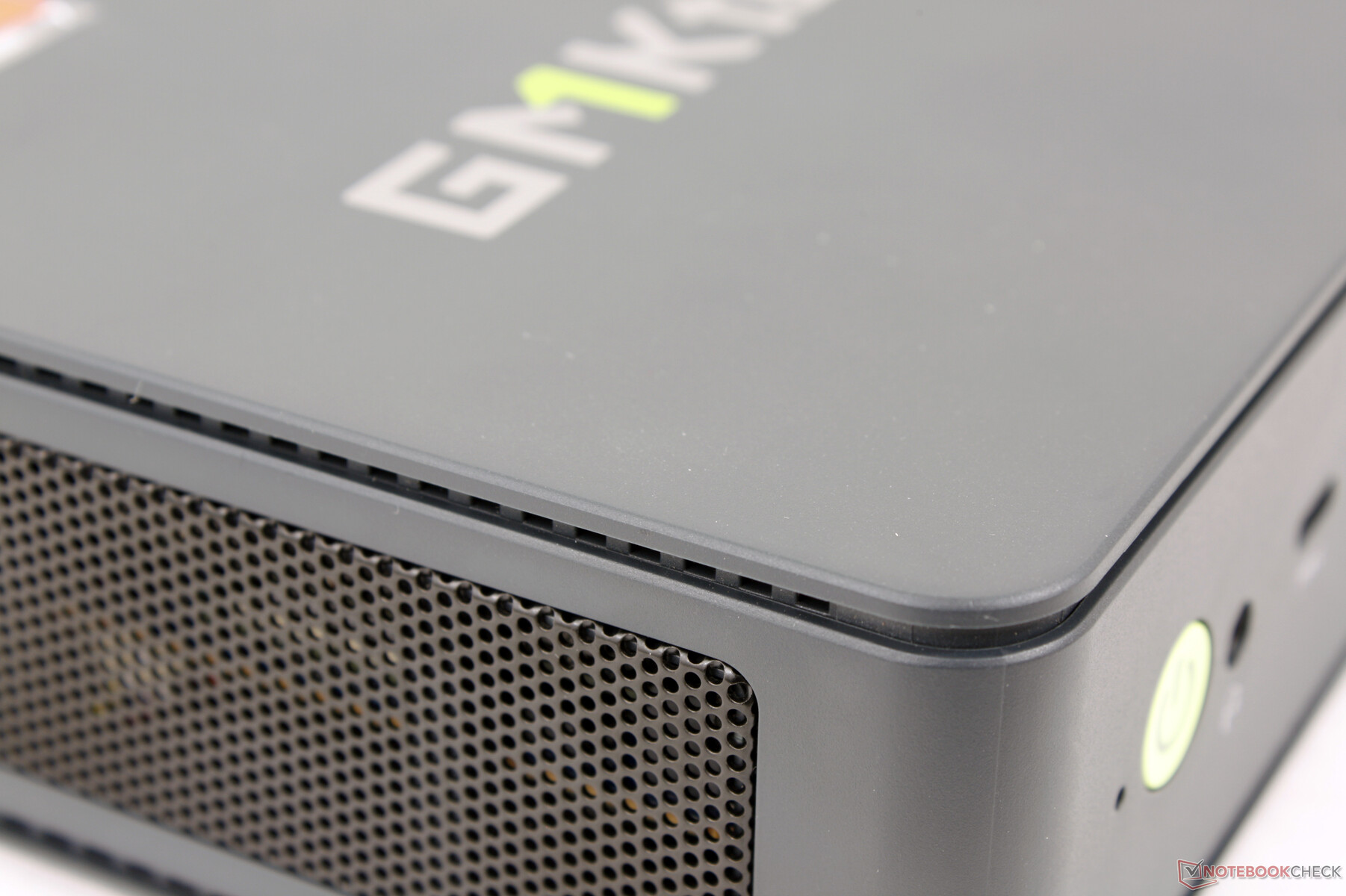

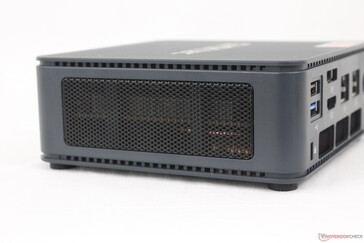

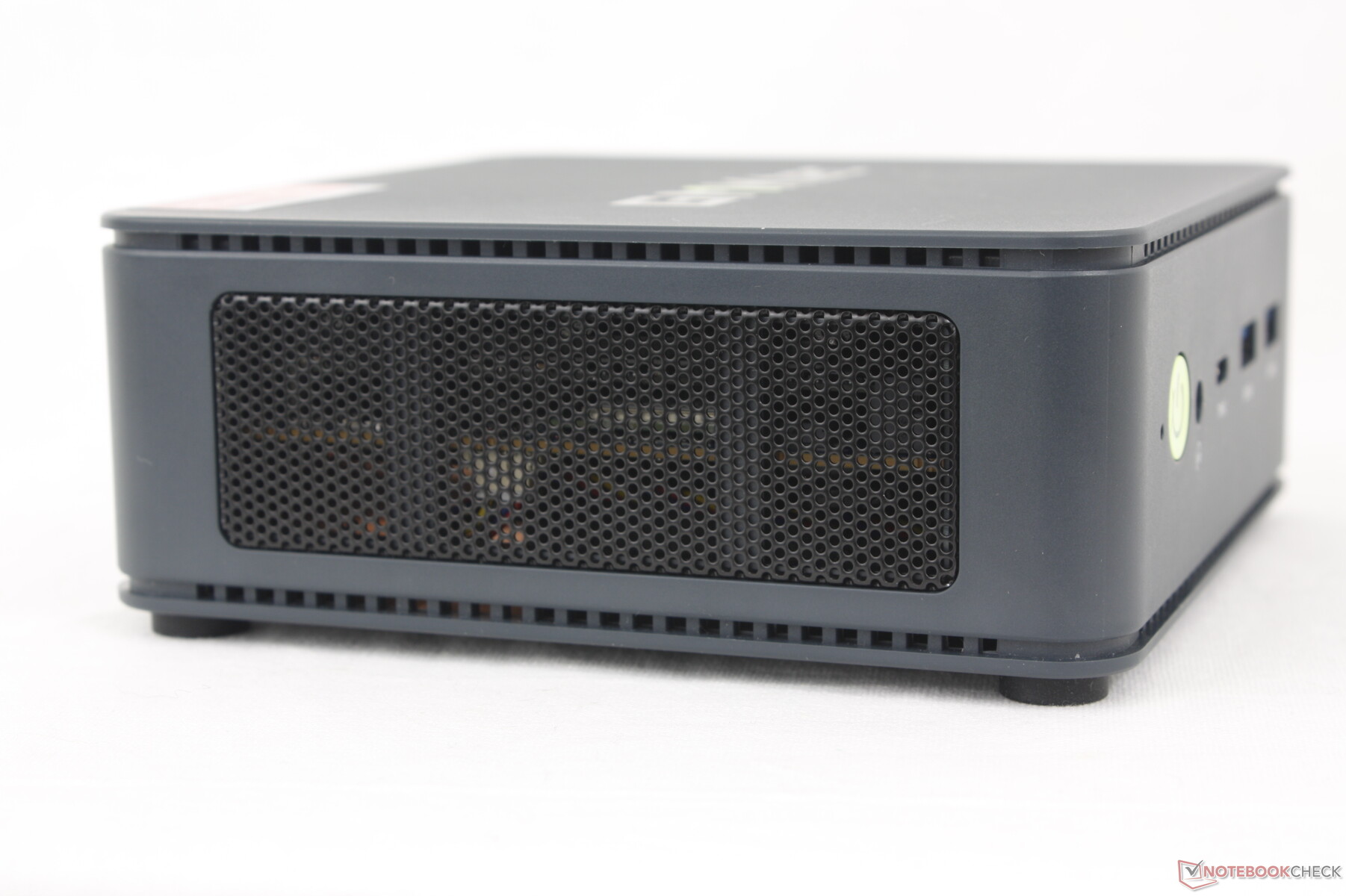

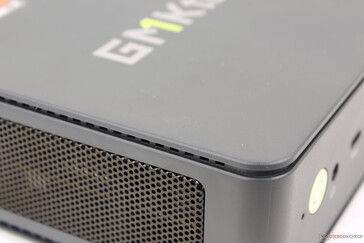

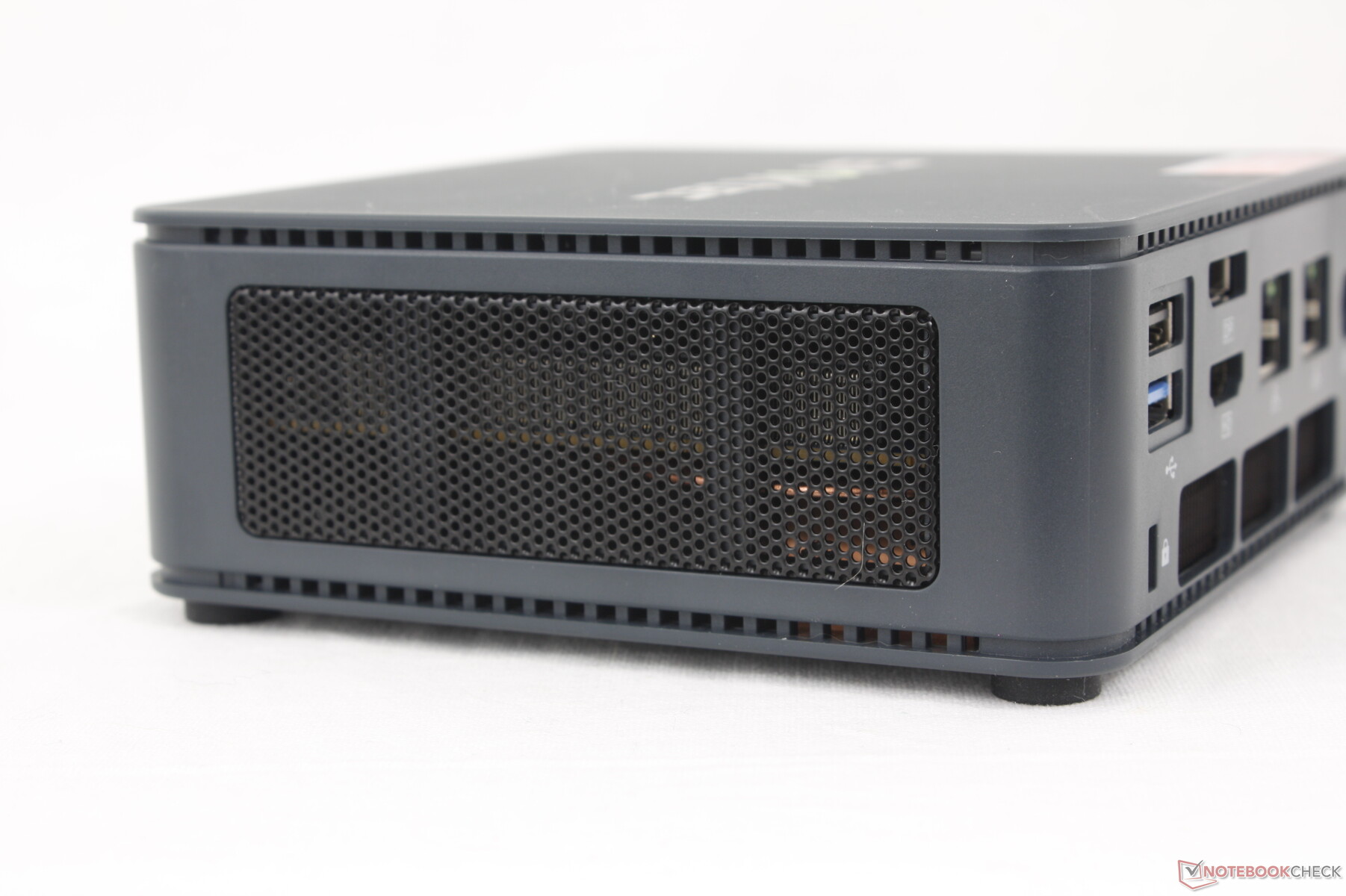

Fentes d'aération le long des périmètres supérieur et inférieur

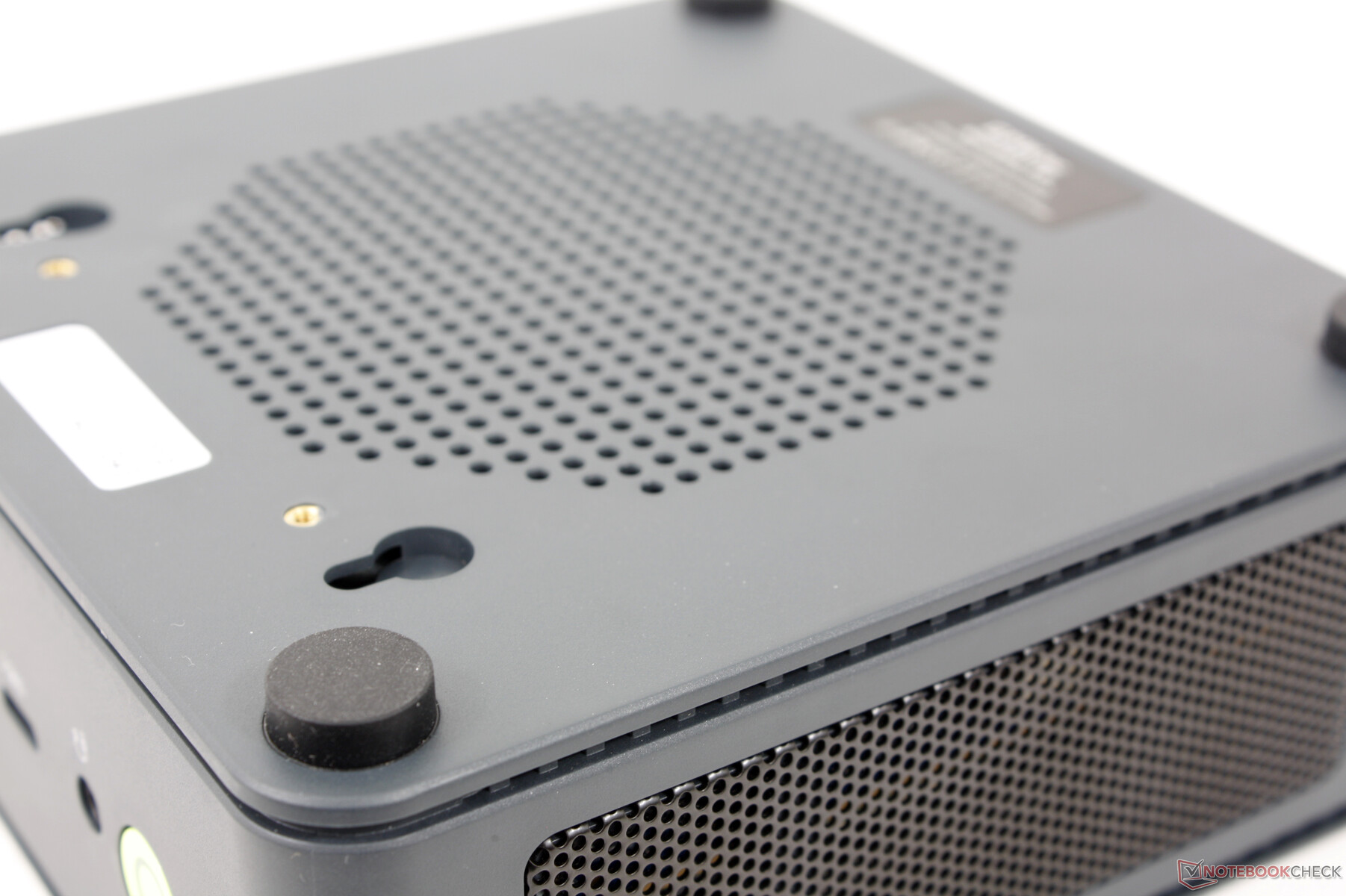

Support de montage VESA sur la plaque inférieure

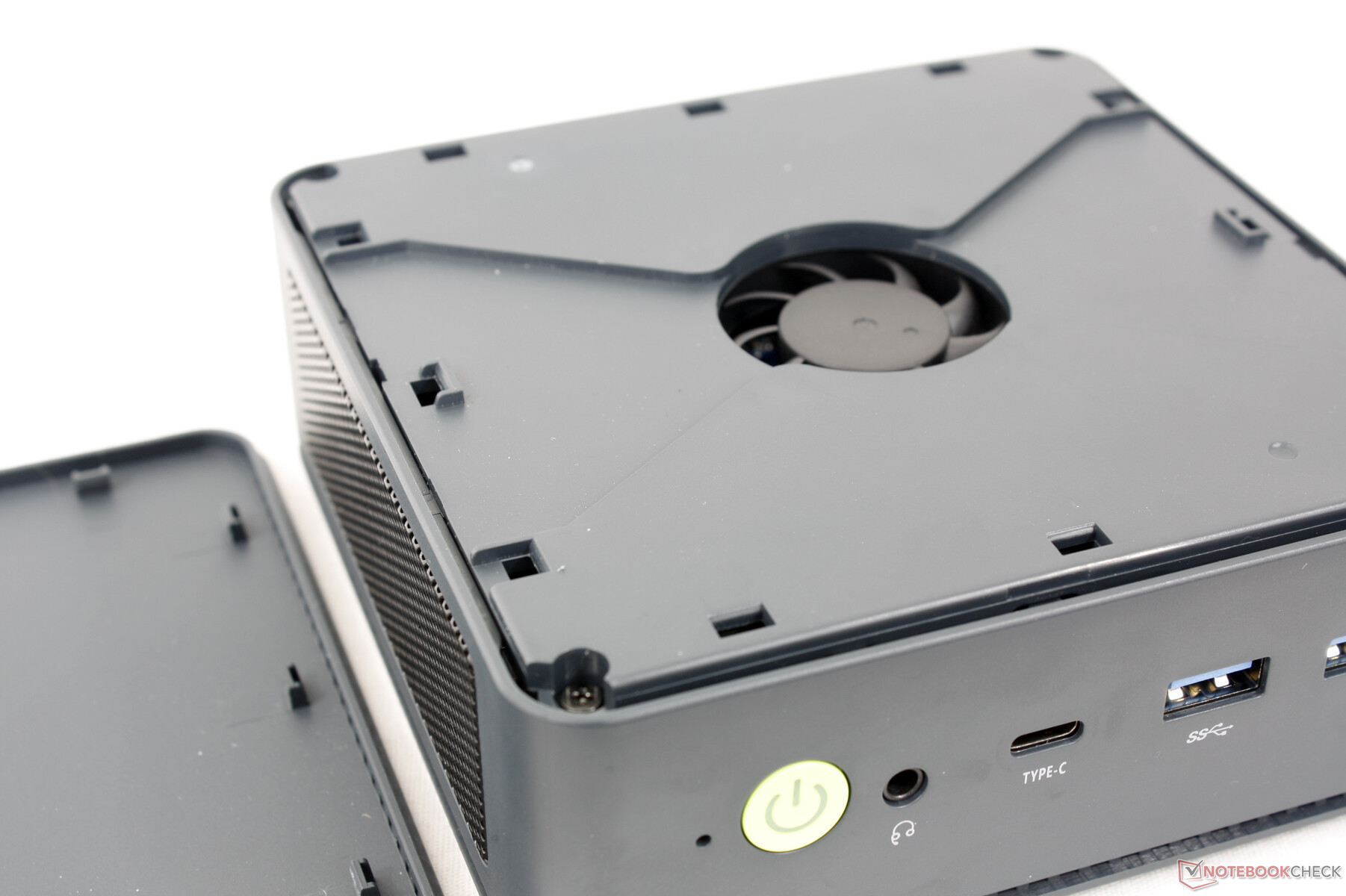

La plaque supérieure se détache facilement pour exposer le ventilateur supérieur

Comparaison des tailles

Connectivité

Les options de port sont variables selon les préférences. Par rapport à l'Intel NUC 13 Pro, par exemple, le GMK comprend plus de ports RJ-45 et un DisplayPort de taille normale. En revanche, il ne dispose que d'un seul port USB-C alors que le modèle d'Intel en intègre deux.

Les périphériques Thunderbolt sont pris en charge par le port USB-C 4. Il est également possible d'alimenter le mini PC avec des adaptateurs secteur USB-C tiers au lieu de s'appuyer sur l'adaptateur en barillet propriétaire ; notre adaptateur secteur USB-C 135 W de Lenovo fonctionnerait sans problème.

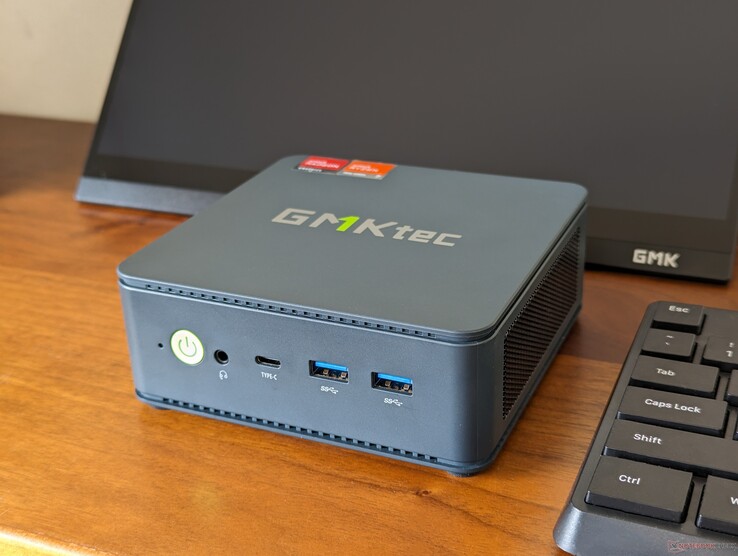

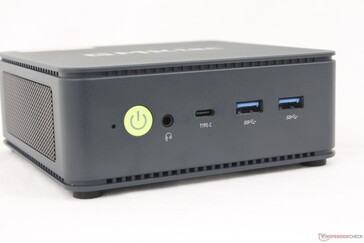

Face avant : Bouton d'alimentation, casque 3,5 mm, USB-C 4.0 avec Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

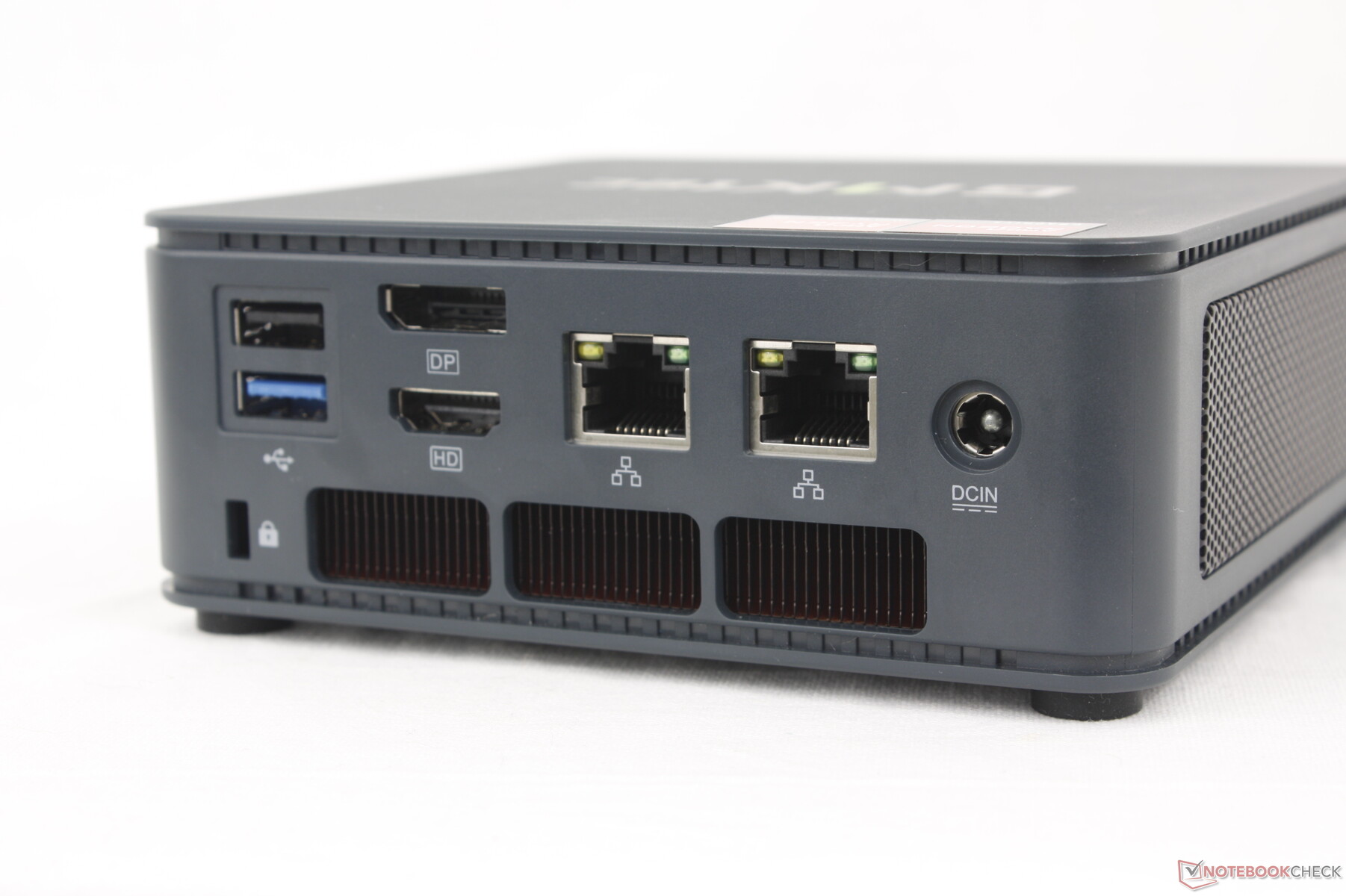

Arrière : USB-A 2.0, USB-A 3.2 Gen. 1, DisplayPort (4K60), HDMI 2.0 (4K60), 2x RJ-45 (2,5 Gbps), adaptateur secteur, verrou Kensington

Communication

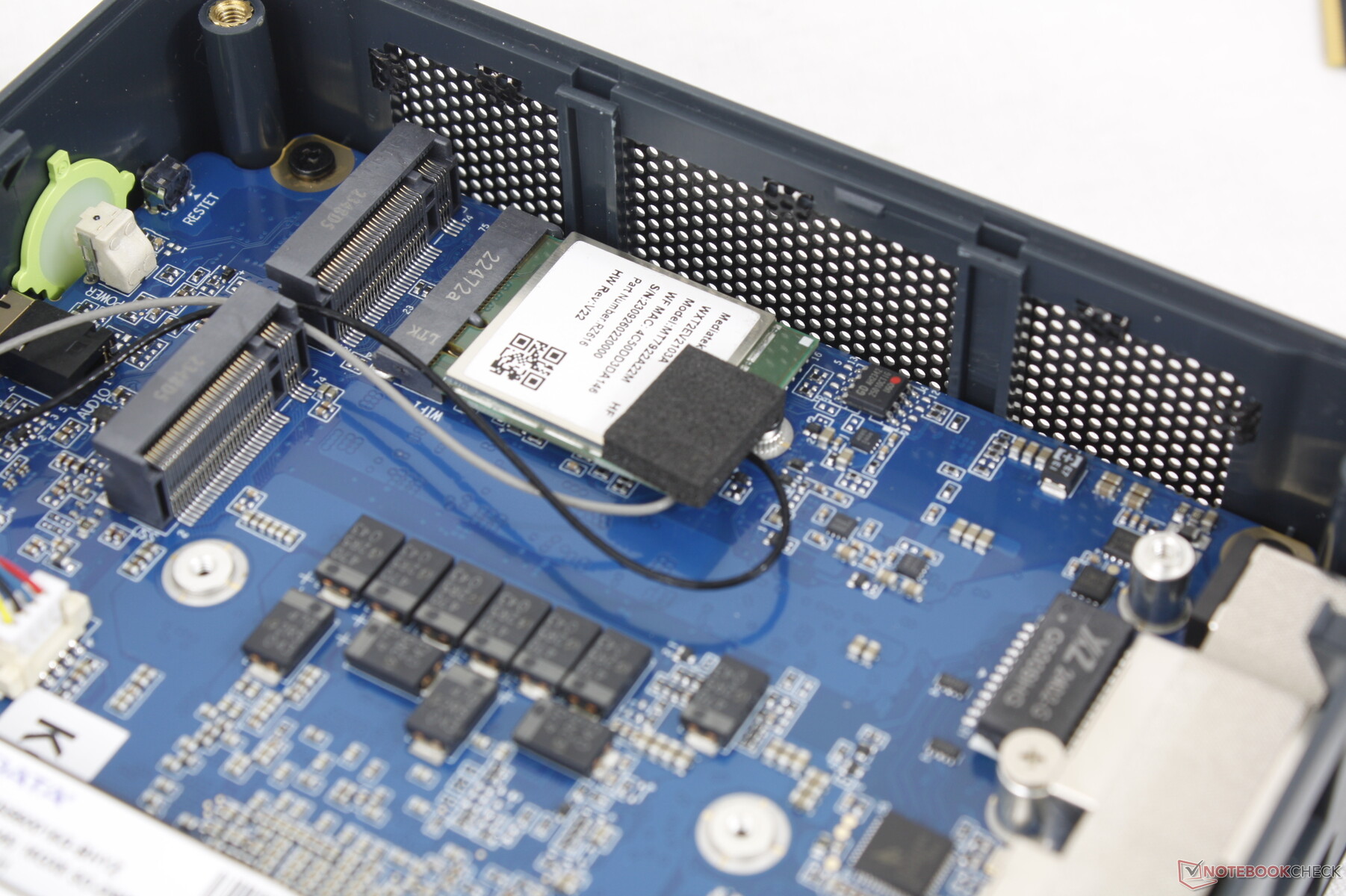

Cette machine réservée à AMD est livrée avec le MediaTek RZ616 au lieu de l'habituelle solution Intel AX pour la connectivité Wi-Fi 6E et Bluetooth 5.3. Les performances sont régulières et fiables, bien que les taux de transmission soient plus lents.

Networking
iperf3 transmit AXE11000
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +105%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s +102%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +85%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	892 (728^min - 980^max) MBit/s +41%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s +31%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s +15%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +6%
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -9%
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	963 (950^min - 971^max) MBit/s -21%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -30%
iperf3 transmit AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1646 (1280^min - 1762^max) MBit/s +281%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +250%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s +216%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s
iperf3 receive AXE11000 6GHz
AcePC Wizbox AI Intel Wi-Fi 7 BE200 320MHz	1634 (750^min - 1729^max) MBit/s +66%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +47%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s +40%
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s

GMK NucBox K6; iperf3 transmit AXE11000; iperf 3.1.3: Ø633 (574-685)

GMK NucBox K6; iperf3 receive AXE11000; iperf 3.1.3: Ø1221 (1074-1368)

Maintenance

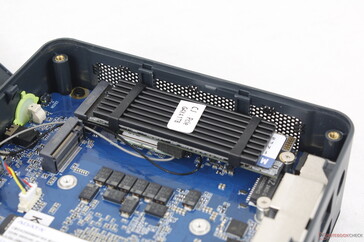

Les composants évolutifs sont accessibles par le haut, mais pas par le bas, contrairement à la plupart des autres mini-PC. Alors que le couvercle extérieur est amovible sans outil, le couvercle du ventilateur situé en dessous nécessite un tournevis.

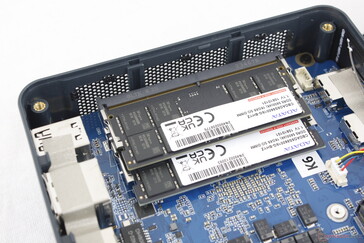

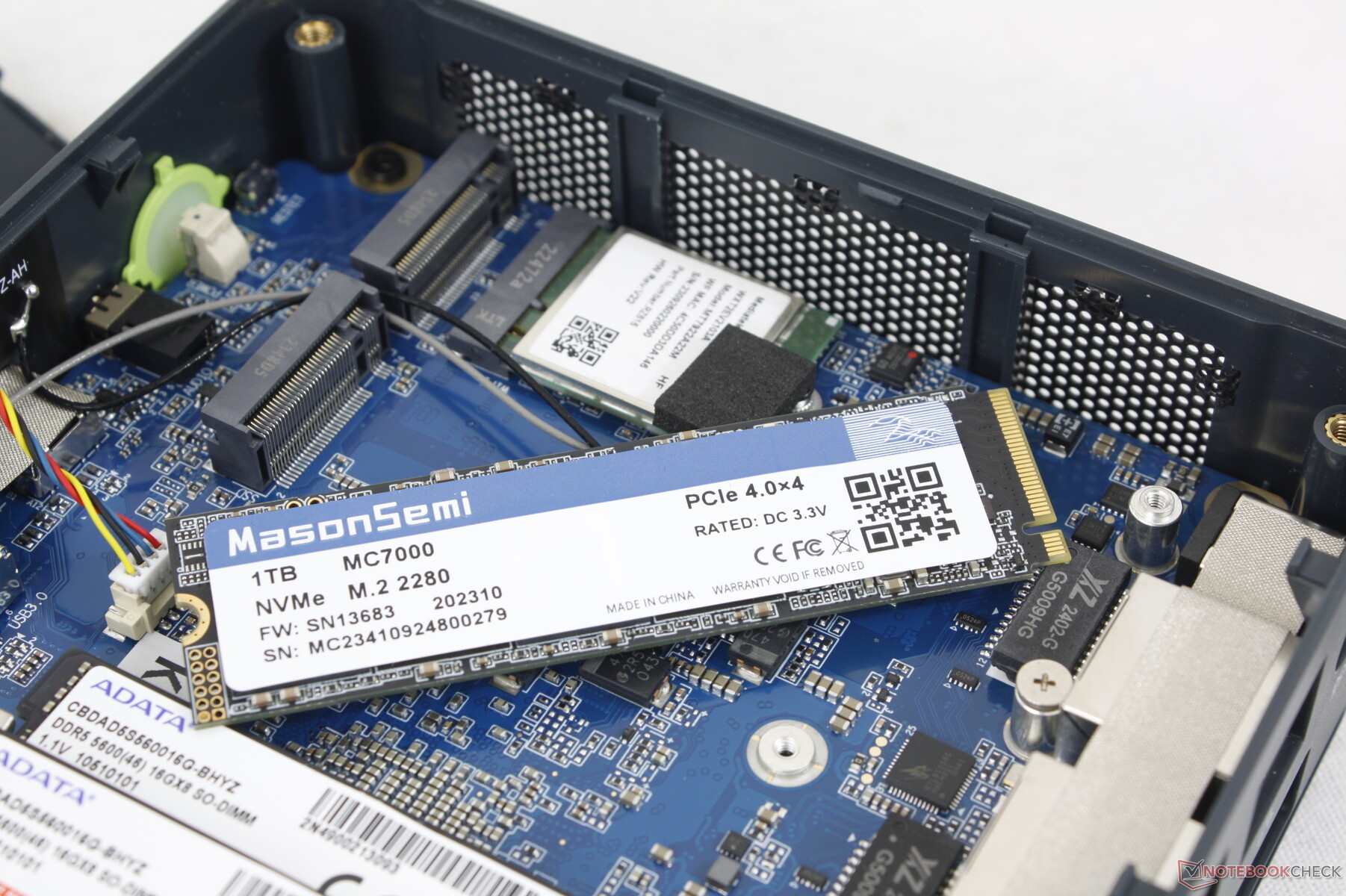

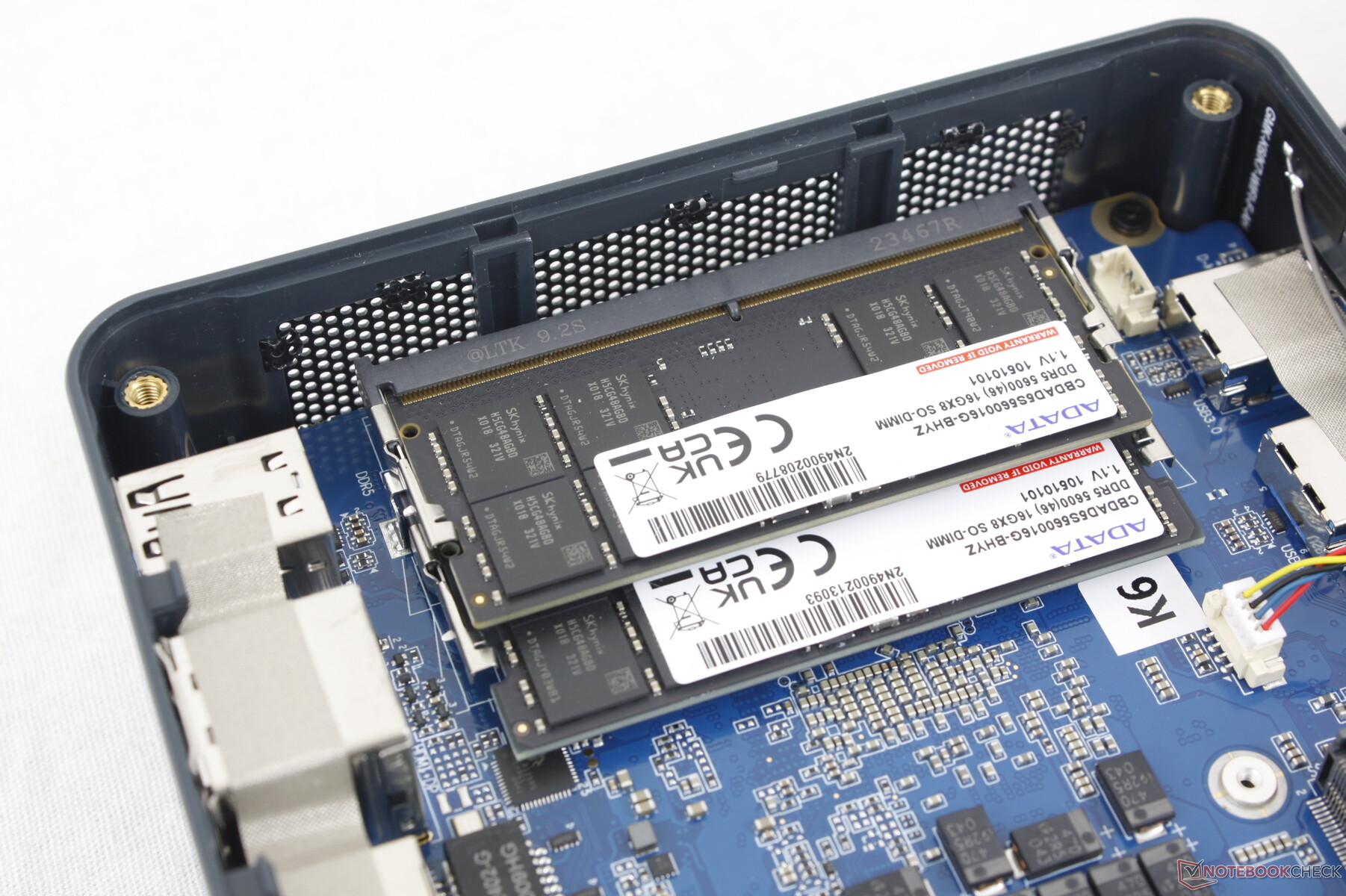

Les utilisateurs ont un accès direct à deux emplacements de RAM SODIMM, au module WLAN et à deux emplacements M.2 PCIe4 x4 2280 SSD, comme le montre l'image ci-dessous. Il n'y a pas de support SATA III de 2,5 pouces. Pour accéder à la solution de refroidissement, au processeur et au ventilateur secondaire, il faut retourner la carte mère.

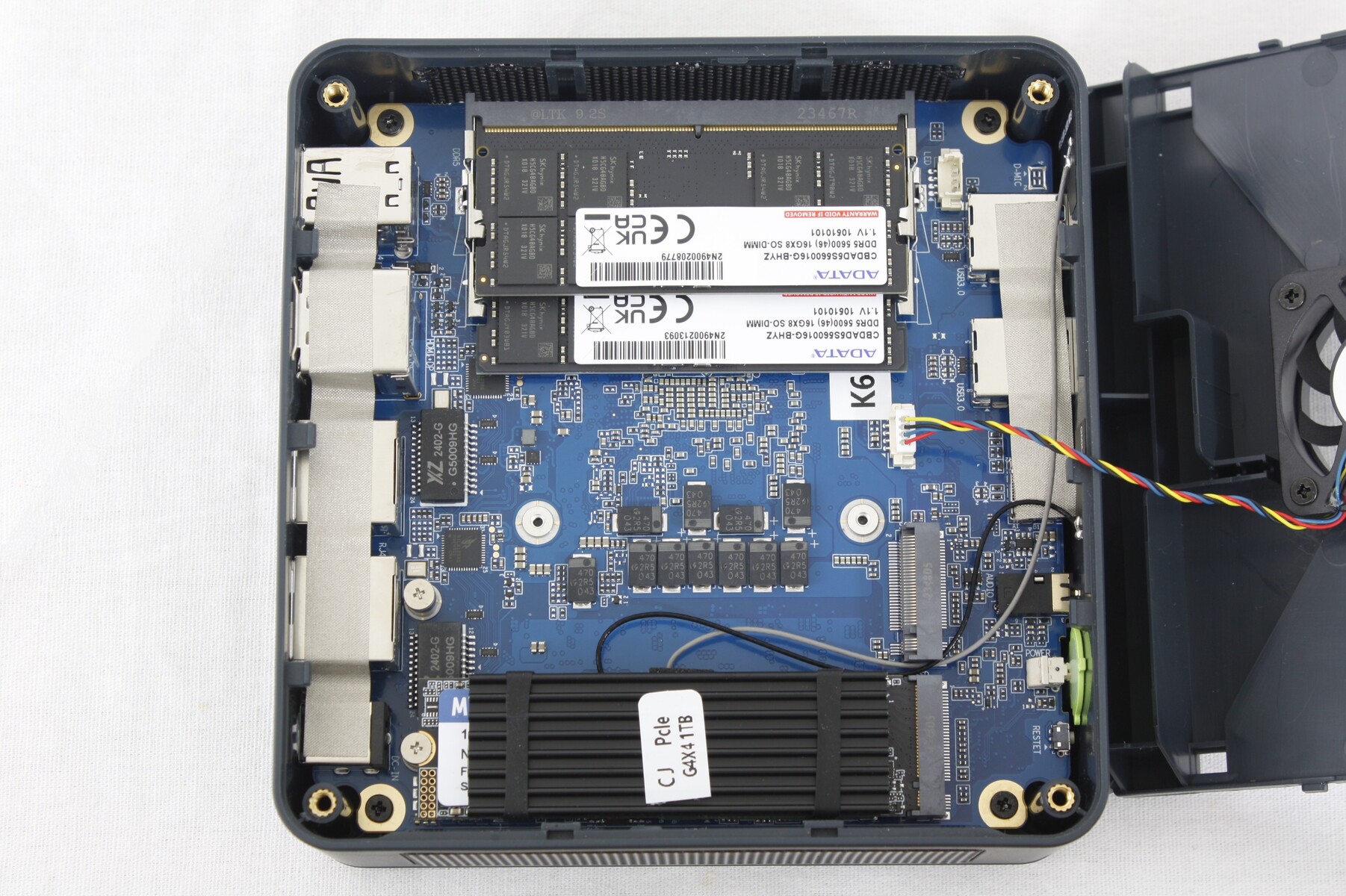

Carte mère avec plaque extérieure et couvercle de ventilateur enlevés

Accessoires et garantie

L'emballage comprend un câble HDMI et un support VESA amovible avec des vis. La garantie limitée standard d'un an du fabricant s'applique si vous achetez aux États-Unis.

Performances - La Zen 4 d'AMD reste très puissante

Conditions d'essai

Nous avons réglé Windows sur le mode Performance avant d'effectuer les tests de référence ci-dessous. Il n'y a pas d'applications préinstallées pour une expérience utilisateur Windows propre.

Processeur

Le Ryzen 7 7840HS fonctionne bien, sans problème majeur d'étranglement, même lors des tests de stress. Il reste l'un des CPU les plus rapides pour les mini PC de la taille d'un NUC. Les performances globales sont comparables à celles du processeur Ryzen 9 7940HS plus onéreux, et au Core i7-13700H du Lenovo IdeaCentre Mini.

Cinebench R15 Multi Loop

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

AcePC Wizbox AI Intel Core Ultra 7 155H: Ø2303 (2192.5-2638.35)

Geekom A7 AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Multi Core
Moyenne AMD Ryzen 7 7840HS (15515 - 17214, n=17)	16414 Points +3%
AcePC Wizbox AI Intel Core Ultra 7 155H	16352 Points +3%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points
Geekom A7 AMD Ryzen 9 7940HS	15556 Points -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points -9%
Geekom Mini IT13 Intel Core i9-13900H	13846 (12336.6^min - 13845.9^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13817 (12209.7^min - 13817.2^max) Points -13%
Geekom Mini IT13 Intel Core i9-13900H	13811 Points -13%
Aoostar GOD77 AMD Ryzen 7 7735HS	13034 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points -24%
Beelink GTR6 AMD Ryzen 9 6900HX	11862 (11361.7^min - 11862.4^max) Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	11481 (10813.7^min - 11481.3^max) Points -28%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points -33%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points -52%
GMK NucBox M3 Intel Core i5-12450H	7662 (7500.47^min - 7661.93^max) Points -52%
Acemagic Tank03 Intel Core i9-12900H	7359 Points -54%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +6%
AcePC Wizbox AI Intel Core Ultra 7 155H	1801 Points +2%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points
Moyenne AMD Ryzen 7 7840HS (1718 - 1812, n=17)	1768 Points 0%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1737 Points -2%
GMK NucBox M3 Intel Core i5-12450H	1688 Points -5%
Acemagic Tank03 Intel Core i9-12900H	1634 Points -8%
Beelink GTR6 AMD Ryzen 9 6900HX	1608 Points -9%
GMK NucBox M4 Intel Core i9-11900H	1605 Points -9%
Aoostar GOD77 AMD Ryzen 7 7735HS	1557 Points -12%
Beelink SER6 Pro AMD Ryzen 7 6800H	1506 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points -29%

Cinebench R20 / CPU (Multi Core)
Moyenne AMD Ryzen 7 7840HS (6061 - 6744, n=17)	6414 Points +3%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points
AcePC Wizbox AI Intel Core Ultra 7 155H	6033 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points -7%
Geekom Mini IT13 Intel Core i9-13900H	5308 Points -15%
Aoostar GOD77 AMD Ryzen 7 7735HS	5078 Points -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points -25%
Beelink GTR6 AMD Ryzen 9 6900HX	4619 Points -26%
Beelink SER6 Pro AMD Ryzen 7 6800H	4460 Points -29%
GMK NucBox M4 Intel Core i9-11900H	4324 Points -31%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points -35%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points -52%
GMK NucBox M3 Intel Core i5-12450H	2952 Points -53%
Acemagic Tank03 Intel Core i9-12900H	2681 Points -57%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +5%
Geekom A7 AMD Ryzen 9 7940HS	692 Points +1%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points
Moyenne AMD Ryzen 7 7840HS (661 - 705, n=17)	686 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H	681 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	664 Points -3%
GMK NucBox M3 Intel Core i5-12450H	646 Points -6%
Beelink GTR6 AMD Ryzen 9 6900HX	631 Points -8%
Acemagic Tank03 Intel Core i9-12900H	624 Points -9%
GMK NucBox M4 Intel Core i9-11900H	615 Points -11%
Aoostar GOD77 AMD Ryzen 7 7735HS	599 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	584 Points -15%
Beelink SER5 AMD Ryzen 5 5560U	498 Points -28%

Cinebench R15 / CPU Multi 64Bit
AcePC Wizbox AI Intel Core Ultra 7 155H	2638 (2192.5^min - 2638.35^max) Points +4%
Moyenne AMD Ryzen 7 7840HS (2473 - 2729, n=17)	2598 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points
Geekom Mini IT13 Intel Core i9-13900H	2531 Points 0%
Geekom Mini IT13 Intel Core i9-13900H	2061 (1694.13^min - 2060.69^max) Points -19%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points -3%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -18%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points -22%
Beelink GTR6 AMD Ryzen 9 6900HX	1969 (1894.3^min - 1968.5^max) Points -22%
Beelink SER6 Pro AMD Ryzen 7 6800H	1931 (1821.83^min - 1930.5^max) Points -24%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points -30%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points -33%
Acemagic Tank03 Intel Core i9-12900H	1395 Points -45%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points -50%
GMK NucBox M3 Intel Core i5-12450H	1150 (1101.32^min - 1149.92^max) Points -55%

Cinebench R15 / CPU Single 64Bit
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points
Geekom A7 AMD Ryzen 9 7940HS	278 Points -1%
Moyenne AMD Ryzen 7 7840HS (270 - 286, n=17)	278 Points -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points -5%
Beelink GTR6 AMD Ryzen 9 6900HX	260 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points -7%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	251 Points -10%
Geekom Mini IT13 Intel Core i9-13900H	248 Points -11%
Geekom Mini IT13 Intel Core i9-13900H	247 Points -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	248 Points -11%
GMK NucBox M4 Intel Core i9-11900H	243 Points -13%
Beelink SER6 Pro AMD Ryzen 7 6800H	242 Points -14%
GMK NucBox M3 Intel Core i5-12450H	238 Points -15%
Acemagic Tank03 Intel Core i9-12900H	235 Points -16%
Beelink SER5 AMD Ryzen 5 5560U	202 Points -28%

Blender / v2.79 BMW27 CPU
Acemagic Tank03 Intel Core i9-12900H	451 Seconds * -127%
GMK NucBox M3 Intel Core i5-12450H	429 Seconds * -116%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds * -97%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * -66%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * -36%
Beelink SER6 Pro AMD Ryzen 7 6800H	268 Seconds * -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * -35%
Geekom Mini IT13 Intel Core i9-13900H	268 Seconds * -35%
Beelink GTR6 AMD Ryzen 9 6900HX	257 Seconds * -29%
Aoostar GOD77 AMD Ryzen 7 7735HS	246 Seconds * -24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * -9%
AcePC Wizbox AI Intel Core Ultra 7 155H	205 Seconds * -3%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * -2%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds *
Moyenne AMD Ryzen 7 7840HS (185 - 229, n=18)	198.6 Seconds * -0%

7-Zip 18.03 / 7z b 4
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS 0%
Moyenne AMD Ryzen 7 7840HS (59538 - 73035, n=18)	69127 MIPS -2%
AcePC Wizbox AI Intel Core Ultra 7 155H	62334 MIPS -12%
Aoostar GOD77 AMD Ryzen 7 7735HS	58770 MIPS -17%
Beelink GTR6 AMD Ryzen 9 6900HX	57261 MIPS -19%
Beelink SER6 Pro AMD Ryzen 7 6800H	55963 MIPS -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS -27%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS -30%
Geekom Mini IT13 Intel Core i9-13900H	45045 MIPS -36%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS -39%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS -46%
Acemagic Tank03 Intel Core i9-12900H	34684 MIPS -51%
GMK NucBox M3 Intel Core i5-12450H	31119 MIPS -56%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS
Moyenne AMD Ryzen 7 7840HS (6049 - 6754, n=18)	6561 MIPS -2%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS -10%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS -10%
Beelink GTR6 AMD Ryzen 9 6900HX	6005 MIPS -10%
Aoostar GOD77 AMD Ryzen 7 7735HS	5849 MIPS -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS -13%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS -14%
Beelink SER6 Pro AMD Ryzen 7 6800H	5768 MIPS -14%
Acemagic Tank03 Intel Core i9-12900H	5567 MIPS -17%
GMK NucBox M3 Intel Core i5-12450H	5356 MIPS -20%
Geekom Mini IT13 Intel Core i9-13900H	5355 MIPS -20%
AcePC Wizbox AI Intel Core Ultra 7 155H	5344 MIPS -20%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS -29%

Geekbench 6.3 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +2%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points
Moyenne AMD Ryzen 7 7840HS (12111 - 13538, n=18)	13025 Points -1%
AcePC Wizbox AI Intel Core Ultra 7 155H	12539 Points -5%
GMK NucBox K3 Pro Intel Core i7-12650H	11014 Points -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points -17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10362 Points -21%
Aoostar GOD77 AMD Ryzen 7 7735HS	9970 Points -24%
GMK NucBox M4 Intel Core i9-11900H	9401 Points -29%
Acemagic Tank03 Intel Core i9-12900H	9278 Points -30%
GMK NucBox M3 Intel Core i5-12450H	8123 Points -38%
Beelink SER5 AMD Ryzen 5 5560U	6723 Points -49%

Geekbench 6.3 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points
Moyenne AMD Ryzen 7 7840HS (2585 - 2721, n=18)	2662 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2600 Points -3%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points -4%
GMK NucBox K3 Pro Intel Core i7-12650H	2466 Points -8%
AcePC Wizbox AI Intel Core Ultra 7 155H	2415 Points -10%
GMK NucBox M4 Intel Core i9-11900H	2355 Points -12%
GMK NucBox M3 Intel Core i5-12450H	2293 Points -15%
Acemagic Tank03 Intel Core i9-12900H	2263 Points -16%
Aoostar GOD77 AMD Ryzen 7 7735HS	2077 Points -23%
Beelink SER5 AMD Ryzen 5 5560U	1765 Points -34%

Geekbench 5.5 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	12261 Points +4%
AcePC Wizbox AI Intel Core Ultra 7 155H	12248 Points +4%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points
Moyenne AMD Ryzen 7 7840HS (8446 - 12339, n=20)	11674 Points -1%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points -13%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	9363 Points -20%
Beelink GTR6 AMD Ryzen 9 6900HX	9350 Points -21%
Beelink SER6 Pro AMD Ryzen 7 6800H	9218 Points -22%
Geekom Mini IT13 Intel Core i9-13900H	9094 Points -23%
GMK NucBox M4 Intel Core i9-11900H	8829 Points -25%
Acemagic Tank03 Intel Core i9-12900H	8529 Points -28%
GMK NucBox M3 Intel Core i5-12450H	6990 Points -41%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points -49%

Geekbench 5.5 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points
Moyenne AMD Ryzen 7 7840HS (1837 - 2017, n=20)	1966 Points -1%
Geekom Mini IT13 Intel Core i9-13900H	1846 Points -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points -7%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points -8%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points -10%
AcePC Wizbox AI Intel Core Ultra 7 155H	1720 Points -13%
GMK NucBox M4 Intel Core i9-11900H	1692 Points -15%
Acemagic Tank03 Intel Core i9-12900H	1664 Points -16%
Beelink GTR6 AMD Ryzen 9 6900HX	1652 Points -17%
GMK NucBox M3 Intel Core i5-12450H	1639 Points -17%
Aoostar GOD77 AMD Ryzen 7 7735HS	1589 Points -20%
Beelink SER6 Pro AMD Ryzen 7 6800H	1554 Points -22%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points -34%

HWBOT x265 Benchmark v2.2 / 4k Preset
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps
Moyenne AMD Ryzen 7 7840HS (11.7 - 21.8, n=18)	19.8 fps -3%
AcePC Wizbox AI Intel Core Ultra 7 155H	18.3 fps -11%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS	15.7 fps -23%
Beelink GTR6 AMD Ryzen 9 6900HX	15.4 fps -25%
Beelink SER6 Pro AMD Ryzen 7 6800H	15 fps -27%
Geekom Mini IT13 Intel Core i9-13900H	14.9 fps -27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps -32%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps -40%
Beelink SER5 AMD Ryzen 5 5560U	10 fps -51%
GMK NucBox M3 Intel Core i5-12450H	8.78 fps -57%
Acemagic Tank03 Intel Core i9-12900H	8.05 fps -61%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s * -29%
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * -24%
AcePC Wizbox AI Intel Core Ultra 7 155H	53 s * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	51.2 s * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	48.8 s * -11%
Moyenne AMD Ryzen 7 7840HS (38.3 - 68.3, n=18)	48.6 s * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * -6%
Beelink GTR6 AMD Ryzen 9 6900HX	46 s * -4%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s *
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +4%
GMK NucBox M3 Intel Core i5-12450H	41.1 s * +7%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +9%
Acemagic Tank03 Intel Core i9-12900H	39 s * +12%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +15%
Geekom Mini IT13 Intel Core i9-13900H	36.8 s * +17%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec * -34%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * -20%
Aoostar GOD77 AMD Ryzen 7 7735HS	0.503 sec * -16%
Beelink SER6 Pro AMD Ryzen 7 6800H	0.4989 sec * -15%
GMK NucBox M3 Intel Core i5-12450H	0.4949 sec * -14%
Acemagic Tank03 Intel Core i9-12900H	0.4934 sec * -14%
AcePC Wizbox AI Intel Core Ultra 7 155H	0.4801 sec * -11%
Geekom Mini IT13 Intel Core i9-13900H	0.4792 sec * -10%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * -8%
Beelink GTR6 AMD Ryzen 9 6900HX	0.4627 sec * -7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * -4%
Moyenne AMD Ryzen 7 7840HS (0.4184 - 0.4739, n=18)	0.4394 sec * -1%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * -0%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec *

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	96 pt
Moyenne AMD Ryzen 7 7840HS	95.9 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	95.8 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	52.6 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	51.2 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	45.6 pt

AIDA64 / FP32 Ray-Trace
Moyenne AMD Ryzen 7 7840HS (24712 - 28921, n=19)	26587 KRay/s +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	15761 KRay/s -38%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s -63%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s -65%

AIDA64 / FPU Julia
Moyenne AMD Ryzen 7 7840HS (103755 - 123167, n=19)	113567 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	84610 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points -47%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points -55%

AIDA64 / CPU SHA3
Moyenne AMD Ryzen 7 7840HS (4293 - 5155, n=19)	4797 MB/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	4171 MB/s -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s -44%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s -56%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s -59%

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +6%
Moyenne AMD Ryzen 7 7840HS (105028 - 125820, n=19)	116128 Points +4%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	87712 Points -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points -22%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points -40%

AIDA64 / FPU SinJulia
Moyenne AMD Ryzen 7 7840HS (13857 - 15525, n=19)	14941 Points +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	10134 Points -31%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points -55%

AIDA64 / FPU Mandel
Moyenne AMD Ryzen 7 7840HS (55540 - 65812, n=19)	60589 Points +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	40440 Points -30%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points -46%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -51%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points -59%

AIDA64 / CPU AES
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	138938 MB/s -15%
Moyenne AMD Ryzen 7 7840HS (67389 - 177158, n=19)	132175 MB/s -19%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s -50%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s -52%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -67%

AIDA64 / CPU ZLib
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	1117 MB/s +8%
Moyenne AMD Ryzen 7 7840HS (949 - 1123, n=19)	1065 MB/s +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s -42%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s -51%

AIDA64 / FP64 Ray-Trace
Moyenne AMD Ryzen 7 7840HS (13100 - 15599, n=19)	14270 KRay/s +5%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	8240 KRay/s -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s -56%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s -62%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s -67%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +8%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s 0%
Moyenne AMD Ryzen 7 7840HS (17615 - 41516, n=19)	37735 MPixel/s -7%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	32719 MPixel/s -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s -28%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s -56%

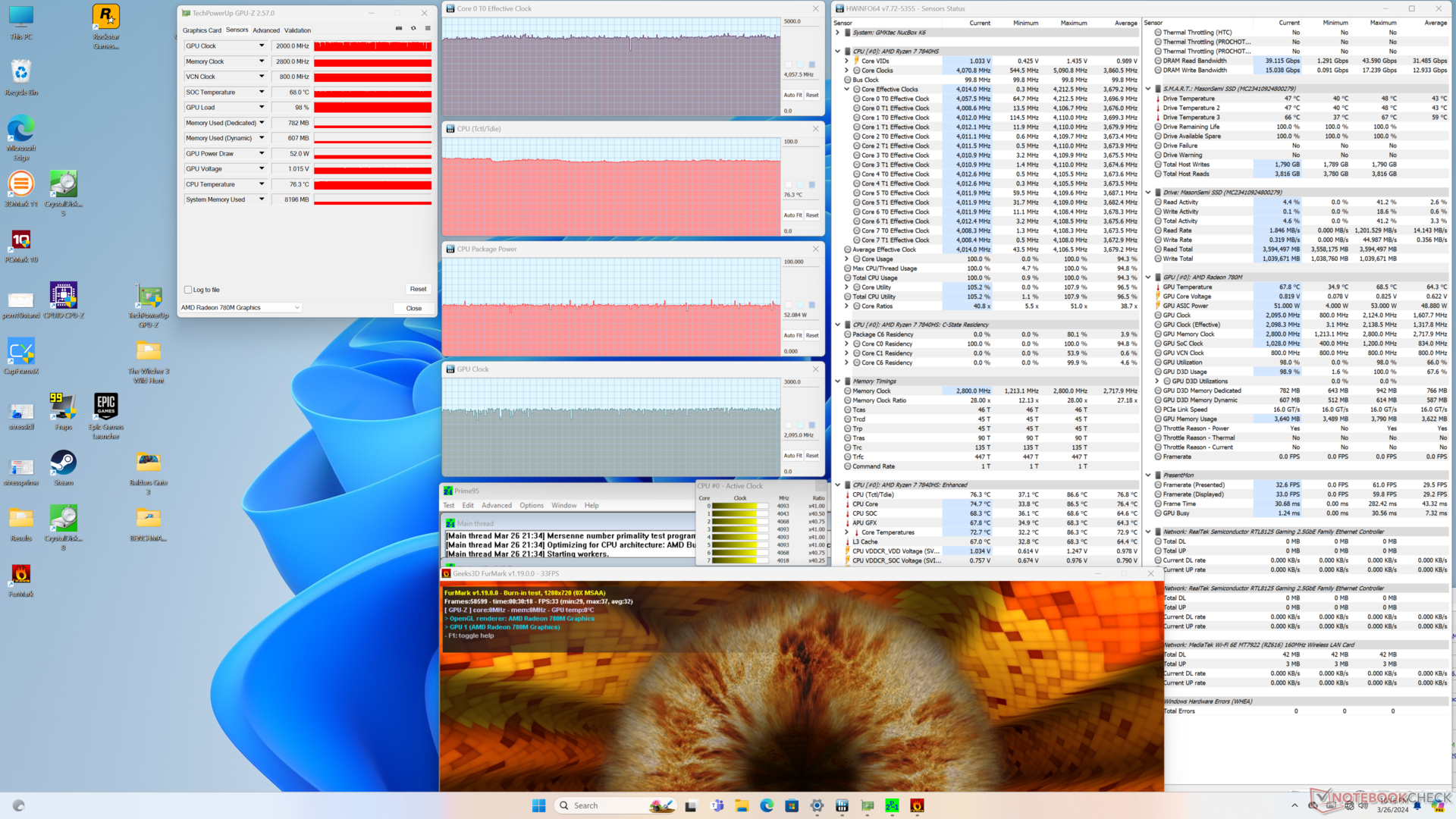

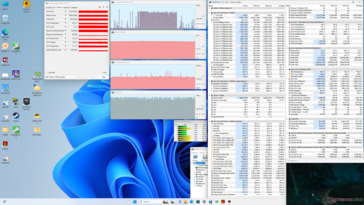

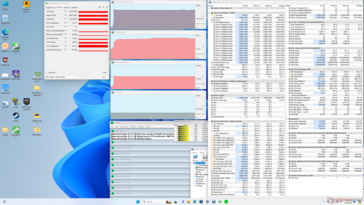

Test de stress

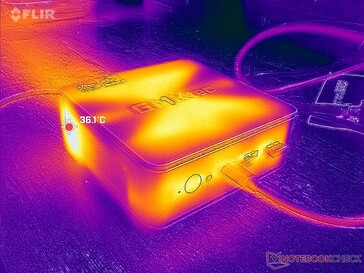

Lors de l'exécution de Prime95, le processeur atteignait 4 GHz et 54 W pendant quelques secondes avant de redescendre légèrement à 3,8 GHz et 52 W. La température du cœur lors de l'exécution de charges exigeantes telles que les jeux se stabilisait dans une fourchette moyenne de 70 C, contre 65 C pour l'ancien mais plus faible Beelink SER5.

Performance du système

Les résultats de PCMark sont comparables à ceux du Geekom A7 même si le Geekom est équipé du Ryzen 9 7940HS, plus cher. Du côté d'Intel, les mini PC équipés de CPU Meteor Lake-H comme l'AcePC sont les équivalents les plus proches de notre GMK.

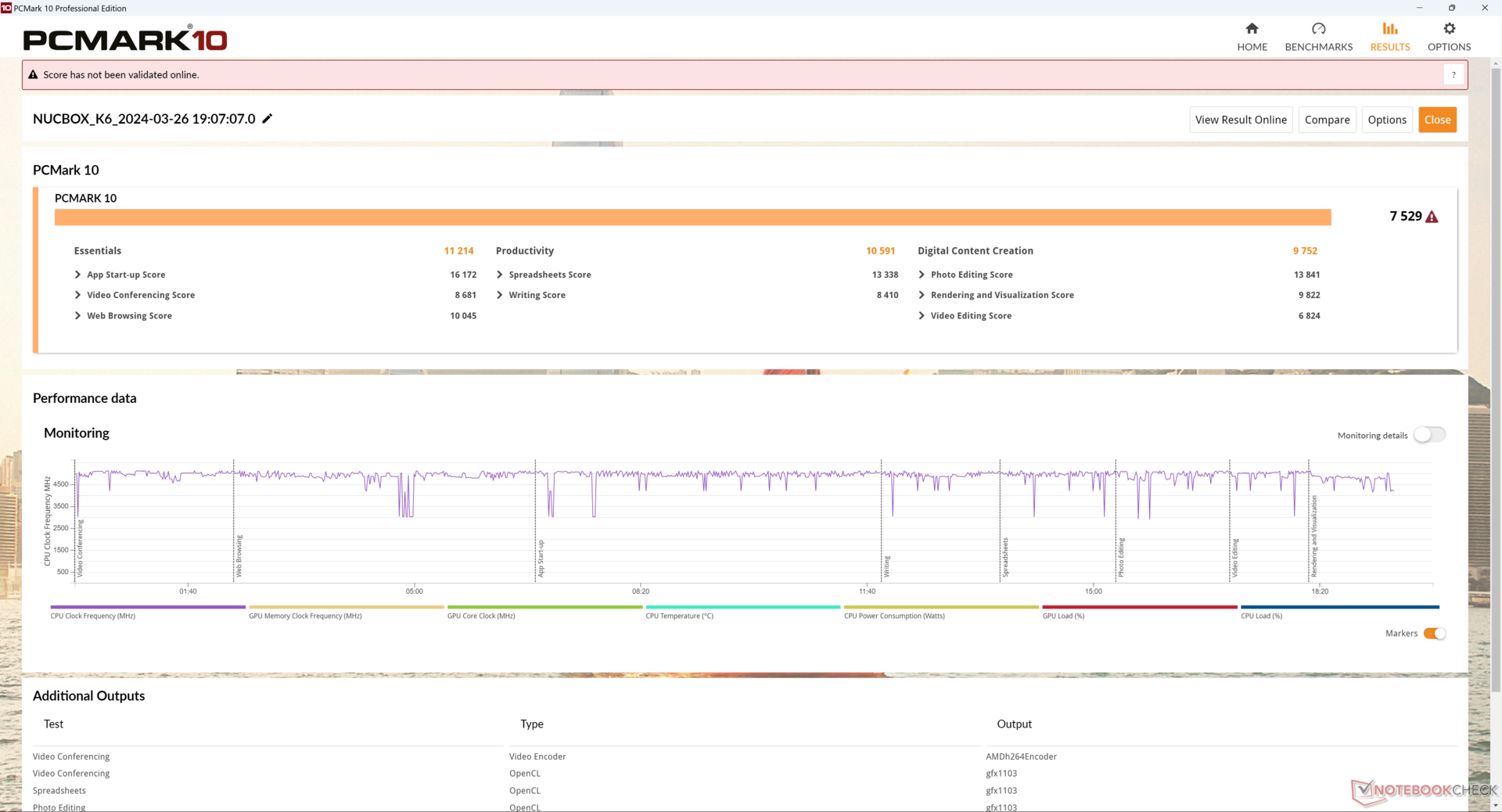

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	7455 Points -1%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (7039 - 7651, n=8)	7381 Points -2%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	7297 Points -3%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points -22%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points -28%

PCMark 10 / Essentials
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	11114 Points -1%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points -2%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (10519 - 11214, n=8)	11024 Points -2%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	10858 Points -3%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points -4%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points -16%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (9075 - 10970, n=8)	10327 Points -2%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	10291 Points -3%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9836 Points -7%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points -16%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points -26%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -38%

PCMark 10 / Digital Content Creation
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	9875 Points +1%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9831 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (9052 - 9987, n=8)	9600 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points -22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points -34%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points -46%

CrossMark / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1861 Points -1%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (1566 - 1891, n=8)	1756 Points -6%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1678 Points -10%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points -16%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points -36%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1781 Points -2%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (1535 - 1823, n=8)	1690 Points -7%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1600 Points -12%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points -15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points -17%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points -31%

CrossMark / Creativity
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2072 Points +4%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (1556 - 2040, n=8)	1915 Points -4%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1869 Points -6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points -11%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points -12%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points -42%

CrossMark / Responsiveness
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1540 Points -10%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (1293 - 1749, n=8)	1528 Points -10%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1400 Points -18%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points -23%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points -24%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points -33%

WebXPRT 3 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	333 Points +2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (297 - 339, n=8)	323 Points -2%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points -8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	301 Points -8%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	269 Points -18%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	250 Points -24%

WebXPRT 4 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	268 Points +1%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (248 - 319, n=7)	268 Points +1%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points 0%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	192.4 Points -28%

Mozilla Kraken 1.1 / Total
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	702 ms * -31%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	544 ms * -2%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms *
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	522 ms * +2%
Moyenne AMD Ryzen 7 7840HS, AMD Radeon 780M (485 - 544, n=8)	519 ms * +3%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	503 ms * +6%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +7%

* ... Moindre est la valeur, meilleures sont les performances

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s -3%
Moyenne AMD Ryzen 7 7840HS (30937 - 72158, n=19)	66323 MB/s -4%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	63807 MB/s -8%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s -36%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s -44%

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +9%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s 0%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	60544 MB/s -2%
Moyenne AMD Ryzen 7 7840HS (30497 - 62147, n=19)	58070 MB/s -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -27%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s -36%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s
Moyenne AMD Ryzen 7 7840HS (34590 - 93323, n=19)	84045 MB/s -3%
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	64852 MB/s -25%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -47%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s -52%

AIDA64 / Memory Latency
AcePC Wizbox AI Intel Core Ultra 7 155H, Arc 8-Core	154.6 ns * -75%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -9%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns * -6%
Moyenne AMD Ryzen 7 7840HS (85.1 - 112, n=19)	92.4 ns * -5%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * -1%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns *

* ... Moindre est la valeur, meilleures sont les performances

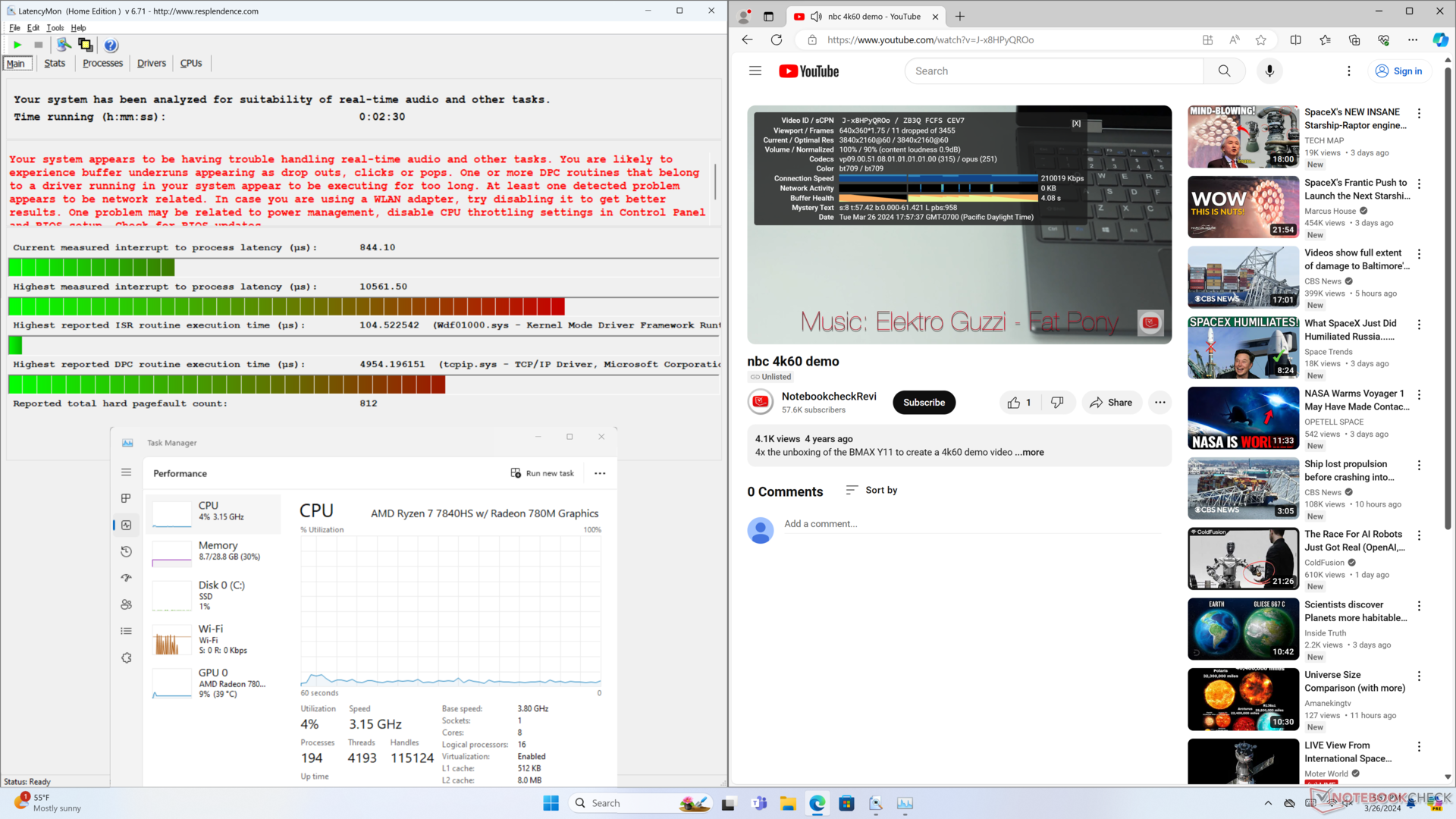

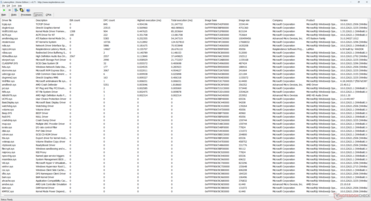

Latence DPC

Malheureusement, le système souffre de problèmes de latence DPC qui affectent la lecture vidéo. Notre vidéo 4K60 d'une minute renvoyait 11 images perdues alors qu'il ne devrait y en avoir aucune. Attendez-vous donc à de légers bégaiements lors de la lecture de vidéos en continu.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +85%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +87%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +90%
AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	983.89 μs * +91%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs * +97%

* ... Moindre est la valeur, meilleures sont les performances

Dispositifs de stockage

Les mini PC GMK sont généralement livrés avec des SSD de marques moins connues, probablement pour maintenir les coûts à un niveau bas. Le MasonSemi MC7000 n'est peut-être pas un nom connu, mais ses performances sont néanmoins excellentes, avec des résultats comparables à ceux de la célèbre série PM9A1 de Samsung. Les taux de lecture sont viables à ~7000 MB/s, ce qui est proche de la limite supérieure pour les disques PCIe4 x4.

Notez qu'un seul dissipateur de chaleur est inclus alors que le système peut supporter jusqu'à deux disques.

Il est surprenant de constater que le système comprend un répartiteur de chaleur malgré son prix relativement bas

SSD avec le répartiteur de chaleur enlevé

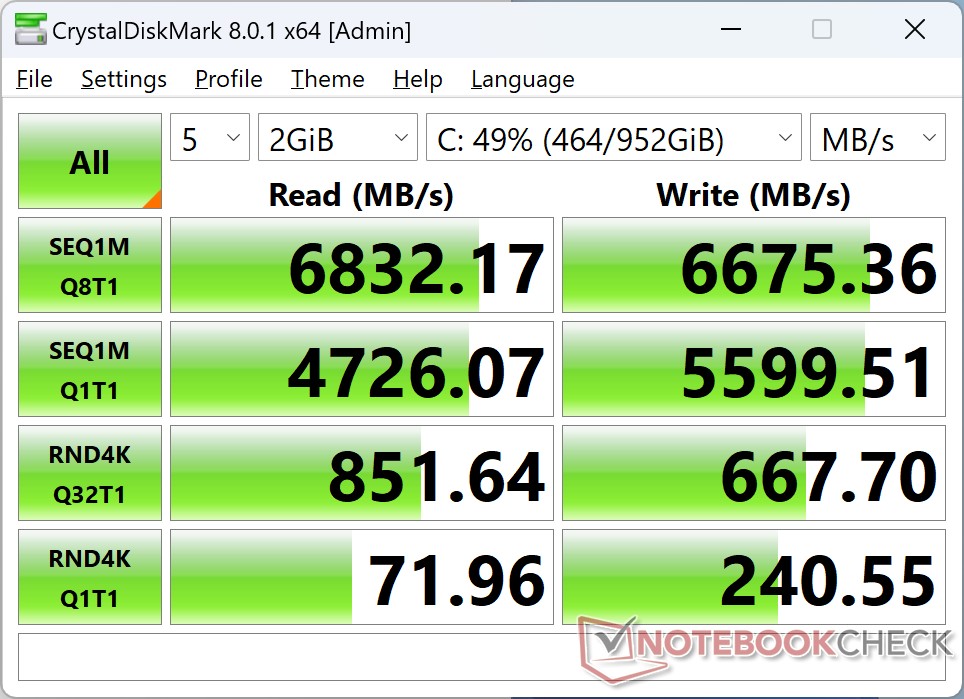

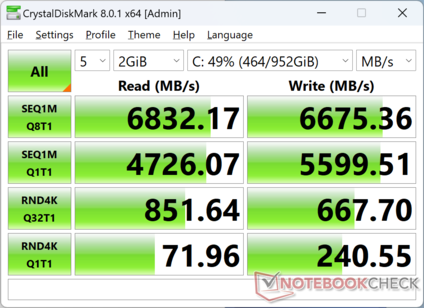

CrystalDiskMark 5.2 / 6

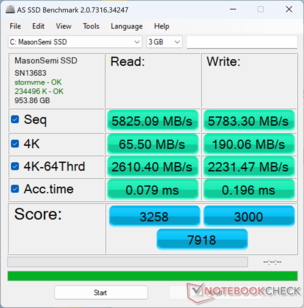

AS SSD

DiskSpd

MasonSemi 1TB MC7000

CDM 5/6 Read Seq Q32T1: 7049 MB/s

CDM 5/6 Write Seq Q32T1: 6666 MB/s

CDM 5/6 Read 4K Q32T1: 854.6 MB/s

CDM 5/6 Write 4K Q32T1: 669.6 MB/s

CDM 5 Read Seq: 4765 MB/s

CDM 5 Write Seq: 5615 MB/s

CDM 5/6 Read 4K: 74.23 MB/s

CDM 5/6 Write 4K: 236.1 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	90.8 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	68.6 pt
Geekom A7 Acer N5000	62.4 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	61.4 pt
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	49.4 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	45 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s -10%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2185 (2022.91^min - 2184.81^max) MB/s -41%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s -46%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s -38%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s -40%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s -49%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2029 (1562.36^min - 2029.13^max) MB/s -64%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -66%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s -23%
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s -31%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	4835 (4317.37^min - 4834.75^max) MB/s -32%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s -51%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s -26%
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s -30%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s -52%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2548 (1848.43^min - 2547.98^max) MB/s -62%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -64%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +19%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	54.8 (54.1^min - 54.82^max) MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s -26%
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -26%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -29%
4k q1 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s -27%
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -31%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -32%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	162.6 (156.04^min - 162.59^max) MB/s -32%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -39%
4k q32 t16 read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s +13%
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s -37%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -54%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	904 (899.18^min - 903.79^max) MB/s -63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -67%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s -44%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1697 (1681.85^min - 1696.69^max) MB/s -57%
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -85%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -87%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -89%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points -34%
Geekom A7 Acer N5000	5177 Points -35%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points -41%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3505 Points -56%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -58%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points -48%
Geekom A7 Acer N5000	1685 Points -48%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -58%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -59%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1251 Points -62%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +11%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points
Geekom A7 Acer N5000	2676 Points -11%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points -29%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1666 Points -44%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -57%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	3756 MB/s -36%
Geekom A7 Acer N5000	3650 MB/s -37%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s -46%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -49%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s -51%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -53%
Geekom A7 Acer N5000	2611 MB/s -55%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	2494 MB/s -57%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -71%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +10%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -22%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	50.6 MB/s -23%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s -24%
Geekom A7 Acer N5000	49.7 MB/s -24%
4K Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +8%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s -12%
Geekom A7 Acer N5000	160 MB/s -16%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s -24%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	136.6 MB/s -28%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s -49%
Geekom A7 Acer N5000	1270 MB/s -51%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -61%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	825 MB/s -68%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -70%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +29%
Geekom A7 Acer N5000	2255 MB/s +1%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s -23%
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	1280 MB/s -43%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -59%
Access Time Read
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.179 ms * -127%
Geekom A7 Acer N5000	0.138 ms * -75%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms * -19%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * -0%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +24%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -87%
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms *
AcePC Wizbox AI Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	0.084 ms * +57%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms * +61%
Geekom A7 Acer N5000	0.072 ms * +63%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +88%

* ... Moindre est la valeur, meilleures sont les performances

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox K6; diskspd 2.0.17 f: Ø7035 (6458.68-7055.24)

Performances du GPU - Suffisamment puissant pour la plupart des jeux

La Radeon 780M s'est avérée être un puissant GPU intégré et peut même fonctionner plus rapidement sur les mini-PC que sur les ordinateurs portables, car le facteur de forme plus épais permet généralement des enveloppes de puissance plus élevées. Dans ce cas, l'iGPU de notre NucBox K6 fonctionne environ 10 % plus vite que la moyenne des ordinateurs portables de notre base de données équipés de la même option graphique. L'avantage en termes de performances peut être encore plus important dans des jeux tels que Tiny Tina's Wonderlands ou F1 22 , où nous pouvons observer un delta allant jusqu'à 20 %. Les utilisateurs qui passent d'un UHD Graphics ou Iris Xe devraient bénéficier d'une amélioration significative.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	100 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	97.9 pt
Moyenne AMD Radeon 780M	91 pt
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	81.7 pt
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	80.8 pt
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	77.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	58.3 pt
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	58.1 pt
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	52.4 pt
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	45.6 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	34 pt
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	31.2 pt

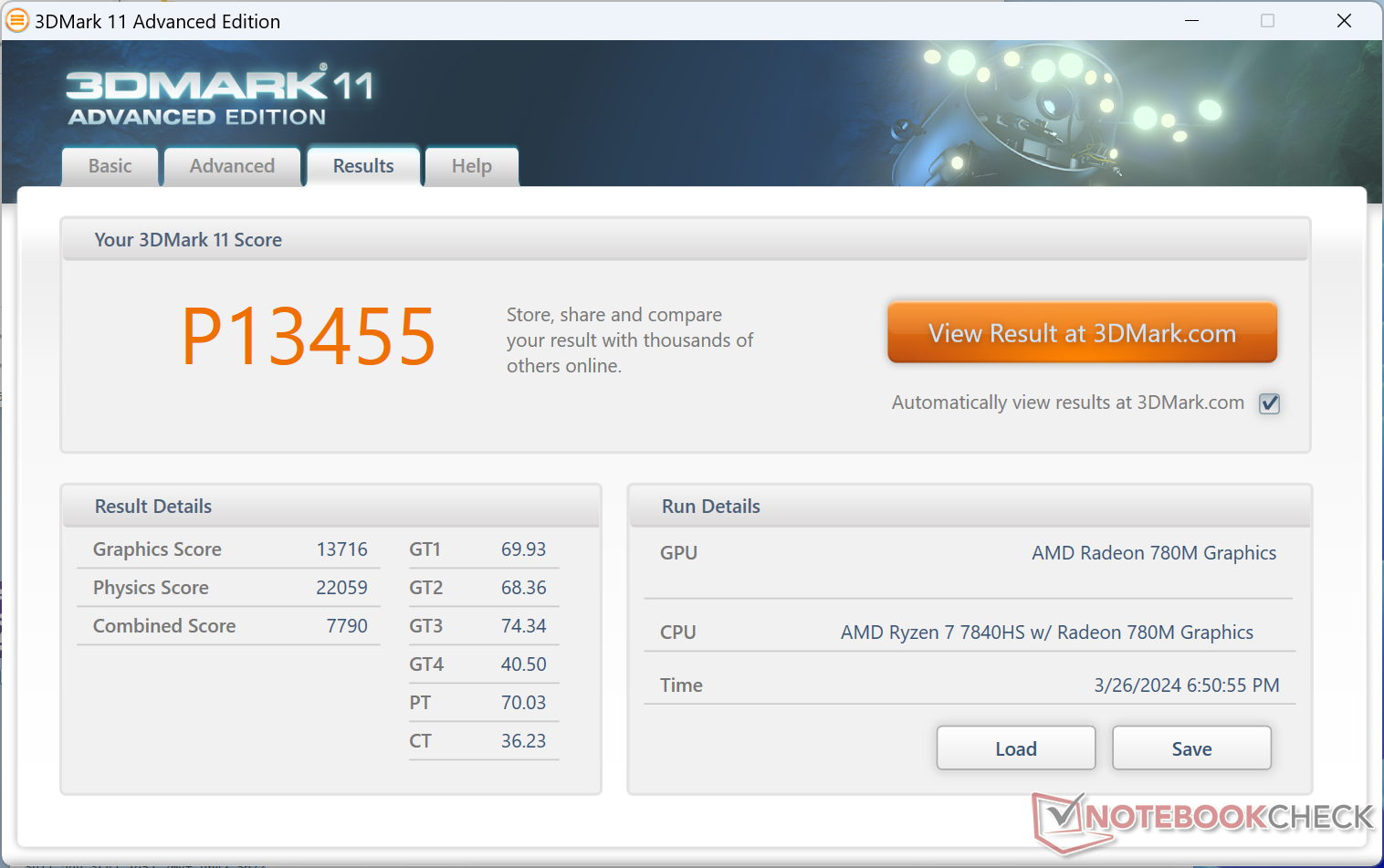

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points
Moyenne AMD Radeon 780M (7868 - 14249, n=53)	12454 Points -9%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	10807 Points -21%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	10566 Points -23%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	10092 Points -26%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points -47%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	7147 Points -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points -50%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points -59%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points -68%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3906 Points -72%

3DMark

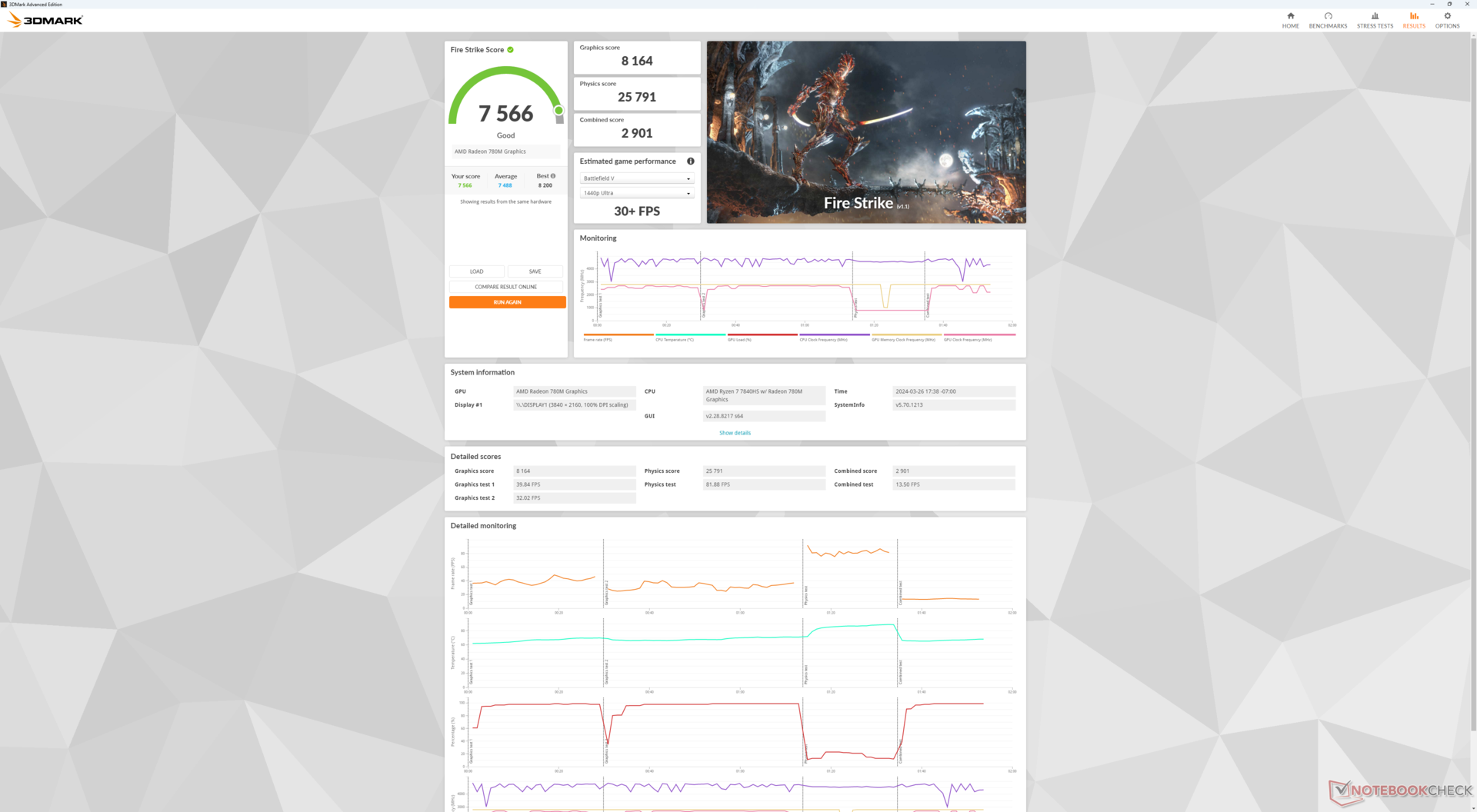

1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +3%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points
Moyenne AMD Radeon 780M (4550 - 8816, n=55)	7739 Points -5%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	7064 Points -13%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	7026 Points -14%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	6962 Points -15%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	5637 Points -31%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points -41%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points -44%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	3131 Points -62%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points -63%

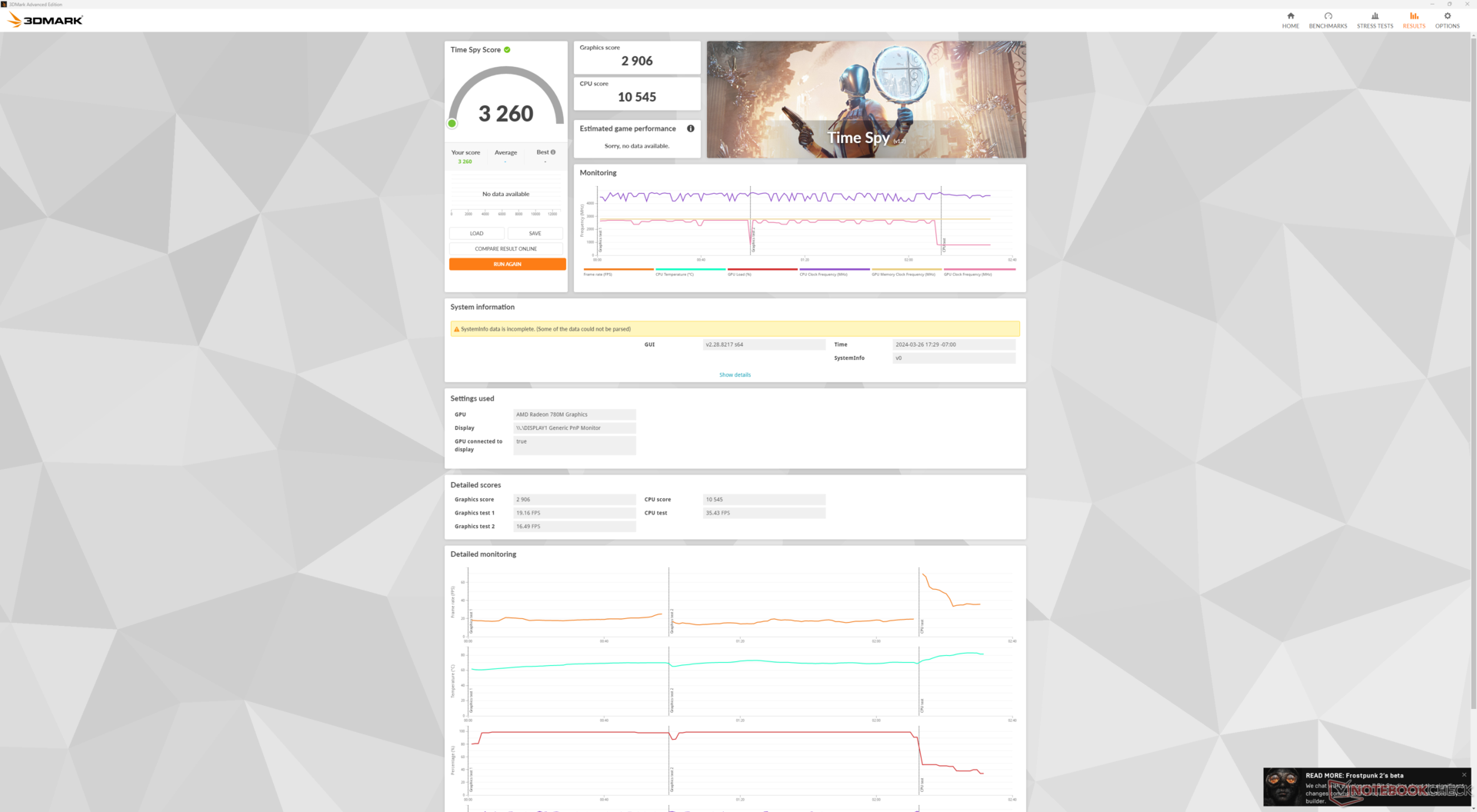

2560x1440 Time Spy Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points
Moyenne AMD Radeon 780M (1496 - 3196, n=55)	2714 Points -7%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2452 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2437 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2290 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1681 Points -42%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points -48%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points -56%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points -66%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	873 Points -70%
2560x1440 Time Spy Score
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	3324 Points +2%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	3260 Points
Moyenne AMD Radeon 780M (1707 - 3517, n=55)	3025 Points -7%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	2751 Points -16%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	2735 Points -16%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	2578 Points -21%
Geekom Mini IT13 Intel Iris Xe Graphics G7 96EUs, Intel Core i9-13900H	1910 Points -41%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points -47%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points -55%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	1135 Points -65%
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	1001 Points -69%

Blender
v3.3 Classroom HIP/AMD
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	356 Seconds *
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	321 Seconds *
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	318 Seconds *
v3.3 Classroom CPU
GMK NucBox M3 Intel UHD Graphics Xe G4 48EUs, Intel Core i5-12450H	741 Seconds * -127%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds * -107%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * -74%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * -46%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * -46%
Beelink SER6 Pro AMD Radeon 680M, AMD Ryzen 7 6800H	453 Seconds * -39%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * -35%
Beelink GTR6 AMD Radeon 680M, AMD Ryzen 9 6900HX	436 Seconds * -33%
Aoostar GOD77 AMD Radeon 680M, AMD Ryzen 7 7735HS	416 Seconds * -27%
Moyenne AMD Radeon 780M (300 - 664, n=51)	375 Seconds * -15%
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	364 Seconds * -11%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	331 Seconds * -1%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds *
v3.3 Classroom oneAPI/Intel
AcePC Wizbox AI Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	255 Seconds *

* ... Moindre est la valeur, meilleures sont les performances

Performance Rating - Percent
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	100 pt
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	74.6 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60 pt
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.9 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%

GTA V - 1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.8 fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41 (6.8^min, 14.4^P1) fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.3 (45.5^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps
Moyenne AMD Radeon 780M (62.6 - 151.2, n=22)	116.9 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	100.6 fps -28%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.6 fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps -58%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	30.6 fps -78%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps
Moyenne AMD Radeon 780M (34.3 - 77.7, n=22)	61.6 fps -17%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 fps -27%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.8 fps -35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps -66%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.1 fps -77%
1920x1080 Medium Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps
Moyenne AMD Radeon 780M (28.4 - 55.9, n=22)	45.1 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	40.5 fps -22%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.2 fps -31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.3 fps -75%
1920x1080 High Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps
Moyenne AMD Radeon 780M (18.6 - 38.8, n=22)	31.4 fps -14%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.9 fps -18%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	28.2 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps -57%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps -63%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps -67%
1920x1080 Badass Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	26.5 fps -10%
Moyenne AMD Radeon 780M (16.5 - 31.3, n=22)	25.7 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.6 fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps -54%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps -64%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps -70%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	171.9 (142^min, 114^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps
Moyenne AMD Radeon 780M (85.4 - 186.7, n=26)	144 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	128.6 (111^min, 94^P1) fps -24%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps -53%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps -58%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps -64%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	51.7 (41^min, 40^P1) fps -70%
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	96.9 (70^min, 53^P1) fps -3%
Moyenne AMD Radeon 780M (47 - 109.9, n=32)	85 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	77.1 (64^min, 61^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	27.9 (23^min, 19^P1) fps -72%
1920x1080 Medium Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.4 (62^min, 63^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps
Moyenne AMD Radeon 780M (41.5 - 95, n=32)	75.1 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.9 (56^min, 51^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps -49%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps -57%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps -67%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	24.8 (21^min, 17^P1) fps -71%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (56^min, 51^P1) fps -2%
Moyenne AMD Radeon 780M (31.7 - 70.6, n=32)	56 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	50.1 (40^min, 39^P1) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps -68%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.5 (14^min, 12^P1) fps -74%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +13%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	18.5 (13^min, 12^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps
Moyenne AMD Radeon 780M (9.92 - 19.2, n=24)	15.5 fps -16%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps -17%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	13.5 (11^min, 11^P1) fps -27%

The Witcher 3
1024x768 Low Graphics & Postprocessing
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps 0%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	139.2 (119^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	138.1 (116^min) fps -11%
Moyenne AMD Radeon 780M (74 - 163.3, n=37)	136.9 fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	119.3 (5.54^min, 30^P0.1, 77.7^P1) fps -23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps -45%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.1 (39^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps -68%
1366x768 Medium Graphics & Postprocessing
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	99.3 (25.6^min, 43.8^P0.1, 72.1^P1) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps
Moyenne AMD Radeon 780M (47.7 - 103.8, n=21)	89.6 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	85.1 (80^min) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	84 (77^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	76.6 (20.1^min, 52.2^P0.1, 62.8^P1) fps -23%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps -43%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps -45%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	38.6 (36^min) fps -61%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps -70%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps -3%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	46 (41^min) fps -10%
Moyenne AMD Radeon 780M (21.3 - 52.2, n=45)	44.2 fps -13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43.3 (36^min) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	36.3 (14.7^min, 17.9^P0.1, 30.9^P1) fps -29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps -47%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20.1 (17^min) fps -61%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps -63%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps -67%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +6%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps
Moyenne AMD Radeon 780M (14.3 - 36, n=47)	28 fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	27.1 (24^min) fps -12%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	27 (25^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (14.2^min, 14.3^P0.1, 14.6^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.8 (18^min, 19^P1) fps -32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps -45%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps -55%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps -60%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps -62%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	9.5 (8^min) fps -69%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -73%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	86 (76^min) fps 0%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps
Moyenne AMD Radeon 780M (42 - 89, n=41)	71.9 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	67 (57^min) fps -22%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps -47%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34 (20^min) fps -60%
1920x1080 Medium Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (41^min) fps -4%
Moyenne AMD Radeon 780M (22 - 54, n=43)	42.3 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39 (35^min) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps -55%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps -57%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17 (15^min) fps -65%
1920x1080 High Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	43 (38^min) fps -4%
Moyenne AMD Radeon 780M (21 - 49, n=43)	39 fps -13%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	35 (31^min) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	16 (14^min) fps -64%
1920x1080 Ultra Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps -5%
Moyenne AMD Radeon 780M (21 - 47, n=43)	37 fps -14%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	34 (30^min) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps -40%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (13^min) fps -65%

GTA V
1024x768 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	167.5 (5.17^min, 125^P1) fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	152.6 (4.69^min, 100^P1) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	152.3 (4.42^min, 100^P1) fps -7%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (5.71^min, 100^P1) fps -10%
Moyenne AMD Radeon 780M (91.6 - 169.4, n=47)	145.1 fps -11%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps -24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps -32%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	106.7 (12.9^min, 71.4^P1) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -36%
1920x1080 Lowest Settings possible
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.1 (21.2^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps
Moyenne AMD Radeon 780M (60.9 - 130.2, n=31)	113.4 fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112 (30.2^min, 71.4^P1) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	111.4 (35^min, 71.4^P1) fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	109.8 (9.31^min, 71.4^P1) fps -12%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps -48%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps -49%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.2 (24.1^min, 45.5^P1) fps -51%
1366x768 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	157.4 (5.24^min, 100^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	139.7 (5.95^min, 90.9^P1) fps -9%
Moyenne AMD Radeon 780M (91.2 - 159, n=39)	138.5 fps -10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	138 (28^min, 90.9^P1) fps -10%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	134.5 (8.19^min, 90.9^P1) fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps -34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps -37%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	90.7 (31.1^min, 55.6^P1) fps -41%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	90.4 (9.41^min, 62.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -45%
1920x1080 Normal/Off AF:4x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	131.5 (6.41^min, 90.9^P1) fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps
Moyenne AMD Radeon 780M (64.9 - 133.5, n=30)	114.4 fps -11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	111.3 (22.1^min, 71.4^P1) fps -14%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	110.4 (6.6^min, 71.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	109.6 (8.03^min, 71.4^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	90.4 (9.41^min, 62.5^P1) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps -42%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps -50%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	61.7 (28^min, 45.5^P1) fps -52%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -55%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.6 (4.46^min, 37^P1) fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps
Moyenne AMD Radeon 780M (32.5 - 68.6, n=48)	60.1 fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	51.9 (14.3^min, 37^P1) fps -21%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	51.8 (9.91^min, 35.7^P1) fps -21%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	48.7 (9.22^min, 34.5^P1) fps -26%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	32.2 (6.83^min, 23.3^P1) fps -51%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps -63%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -68%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -76%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	15 (10^min, 11.4^P1) fps -77%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (4.34^min, 14.1^P1) fps -1%
Moyenne AMD Radeon 780M (12.2 - 27.7, n=48)	24.6 fps -5%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	23.7 (7.88^min, 16.4^P1) fps -9%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	23.7 (9.52^min, 16.4^P1) fps -9%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	20.4 (4.1^min, 14.7^P1) fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.3 (3.05^min, 8.77^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps -57%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -66%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -74%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	6.32 (3.91^min, 4.98^P1) fps -76%

X-Plane 11.11
1280x720 low (fps_test=1)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 fps +3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	66.4 fps +1%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	64.8 fps -2%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.7 fps -5%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	61.5 fps -7%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	53.4 fps -19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps -17%
Moyenne AMD Radeon 780M (39 - 69.6, n=57)	53.3 fps -19%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	50.5 fps -23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps -34%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps -37%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps -42%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.3 fps -45%
1920x1080 med (fps_test=2)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	52.9 fps +12%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	52.6 fps +11%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	49.8 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.2 fps +2%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	46.9 fps -1%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41.3 fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps -13%
Moyenne AMD Radeon 780M (26.2 - 48.9, n=57)	38.9 fps -18%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	36.1 fps -24%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps -42%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	23.8 fps -50%
1920x1080 high (fps_test=3)
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	43 fps +8%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.8 fps +5%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	41.6 fps +5%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +3%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	38.2 fps -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps -11%
Moyenne AMD Radeon 780M (24.5 - 41.5, n=56)	32.8 fps -17%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	31.4 fps -21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps -28%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps -35%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps -39%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -41%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	22 fps -45%

Baldur's Gate 3
1920x1080 Low Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps
Moyenne AMD Radeon 780M (20.2 - 43.9, n=21)	36.4 fps -10%
1920x1080 Medium Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps
Moyenne AMD Radeon 780M (15.7 - 36.8, n=23)	29.2 fps -13%
1920x1080 High Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps
Moyenne AMD Radeon 780M (13.8 - 29.9, n=23)	24.3 fps -14%
1920x1080 Ultra Preset
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27 fps
Moyenne AMD Radeon 780M (13.4 - 29.2, n=22)	23.6 fps -13%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps
Moyenne AMD Radeon 780M (53.6 - 80.6, n=20)	66.6 fps -14%
1920x1080 Low Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps
Moyenne AMD Radeon 780M (32.5 - 52.1, n=38)	40.3 fps -13%
1920x1080 Medium Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps
Moyenne AMD Radeon 780M (16.3 - 37.5, n=33)	31 fps -12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	23.8 (18.8^min) fps -32%
1920x1080 High Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps
Moyenne AMD Radeon 780M (13.8 - 29.6, n=34)	24.6 fps -11%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	17.8 (11.8^min) fps -36%
1920x1080 Ultra Preset (FSR off)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Moyenne AMD Radeon 780M (11.5 - 26.3, n=29)	21.3 fps -13%

Final Fantasy XV Benchmark
1280x720 Lite Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.3 fps -13%
Moyenne AMD Radeon 780M (27.8 - 84.5, n=53)	69.6 fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	68.5 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	68.1 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	62.1 fps -23%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	52.8 fps -35%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	46.1 fps -43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps -44%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps -51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps -54%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps -60%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	28.5 fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -72%
1920x1080 Standard Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps
Moyenne AMD Radeon 780M (21 - 40.9, n=53)	35.2 fps -10%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	34.9 fps -11%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	34.7 fps -12%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	33.5 fps -15%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33.4 fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	32.8 fps -17%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	24.7 fps -37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps -38%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps -44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps -59%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	14.8 fps -62%
1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps
Moyenne AMD Radeon 780M (15.9 - 30.8, n=54)	26.3 fps -10%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	24.6 fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	24.5 fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	23 fps -22%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	21.8 fps -26%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	17.7 fps -40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps -41%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps -48%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps -61%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	10.6 fps -64%

Strange Brigade
1280x720 lowest AF:1
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps
Moyenne AMD Radeon 780M (74.1 - 175.9, n=47)	149.5 fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	142.4 (86.5^min, 118^P1) fps -15%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	141.9 (78.6^min, 116.6^P1) fps -15%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	137.5 (81.3^min, 118.1^P1) fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	131.8 (15.2^min, 64.5^P1) fps -21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps -41%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps -47%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps -53%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	64.4 (13.2^min, 19^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -66%
1920x1080 medium AA:medium AF:4
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps
Moyenne AMD Radeon 780M (31.7 - 70.9, n=48)	62.4 fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	57.8 (43.1^min, 50.8^P1) fps -15%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	57.4 (43.4^min, 51^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	57 (8.9^min, 48.8^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.2 (43.3^min, 47.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps -42%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps -49%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps -55%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	25.6 (7.1^min, 12.5^P1) fps -62%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -67%
1920x1080 high AA:high AF:8
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps
Moyenne AMD Radeon 780M (27.3 - 60.6, n=48)	52.7 fps -9%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	50.4 (24.4^min, 40.8^P1) fps -13%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	48.6 (34.2^min, 38.3^P1) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	48.5 (35.1^min, 38.2^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	45 (34.5^min, 35.8^P1) fps -22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps -45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps -50%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	20 (5^min, 6.58^P1) fps -65%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -70%
1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps
Moyenne AMD Radeon 780M (23.5 - 52.1, n=49)	45 fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	41.9 (32.6^min, 33.4^P1) fps -14%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	41.6 (26.5^min, 33^P1) fps -15%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	41 (6.8^min, 14.4^P1) fps -16%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	39.1 (19^min, 24.6^P1) fps -20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps -47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps -53%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps -58%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	17.7 (5^min, 5^P1) fps -64%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -66%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (135.9^min) fps -3%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	143.3 (123.8^min) fps -11%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	141.9 (121.4^min) fps -12%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	140.9 (120.9^min) fps -13%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	133.8 (103.8^min) fps -17%
Moyenne AMD Radeon 780M (34.7 - 164.8, n=55)	132.7 fps -18%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps -26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps -29%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps -30%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps -31%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	102.5 (56.5^min) fps -36%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	37 (34.9^min) fps -77%
1366x768 med (1/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	120.6 (96.2^min) fps -3%
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	115.1 (100.7^min) fps -8%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	113.4 (94^min) fps -9%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	112.7 (95^min) fps -10%
Moyenne AMD Radeon 780M (33.6 - 130.2, n=55)	107 fps -14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps -25%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	92.6 (61.2^min) fps -26%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps -27%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	87.3 (72.8^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -34%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -44%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	36.2 (33.9^min) fps -71%
1920x1080 high (2/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	89.1 (81.8^min) fps -8%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	87.6 (75^min) fps -10%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	83.9 (73.4^min) fps -13%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	80.9 (71.6^min) fps -16%
Moyenne AMD Radeon 780M (31.6 - 98.8, n=55)	79.2 fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	72.3 (46.1^min) fps -25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps -30%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	67.6 (60.7^min) fps -30%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps -35%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps -50%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -63%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	35.4 (33.8^min) fps -63%
1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps
Aoostar GOD77 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.9 (77.4^min) fps -3%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps -7%
Beelink SER6 Pro AMD Ryzen 7 6800H, AMD Radeon 680M	73.1 (64^min) fps -16%
Beelink GTR6 AMD Ryzen 9 6900HX, AMD Radeon 680M	71.4 (62.3^min) fps -18%
Moyenne AMD Radeon 780M (30.8 - 91.2, n=55)	71.4 fps -18%
AcePC Wizbox AI Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	68.3 (45.5^min) fps -22%
Geekom Mini IT13 Intel Core i9-13900H, Intel Iris Xe Graphics G7 96EUs	61.2 (55.2^min) fps -30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps -31%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps -41%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps -48%
GMK NucBox M3 Intel Core i5-12450H, Intel UHD Graphics Xe G4 48EUs	34.7 (32.5^min) fps -60%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -62%

Witcher 3 FPS Chart

GMK NucBox K6 R7 7840HS, Radeon 780M: Ø30.8 (28-34)

	Bas	Moyen	Élevé	Ultra
GTA V (2015)	163.4	153.8	65.7	26
The Witcher 3 (2015)	155.1	99	50.9	30.8
Dota 2 Reborn (2015)	161.2	124.8	96.8	87.4
Final Fantasy XV Benchmark (2018)	80.8	39.3	29.3
X-Plane 11.11 (2018)	65.9	47.3	39.7
Far Cry 5 (2018)	86	49	45	43
Strange Brigade (2018)	167.7	67.9	57.9	48.8
Tiny Tina's Wonderlands (2022)	74.6	52.2	36.6	29.5
F1 22 (2022)	99.8	85.9	66.7	18.4
Baldur's Gate 3 (2023)	40.5	33.7	28.1	27
Cyberpunk 2077 2.1 Phantom Liberty (2023)	46.3	35.2	27.7	24.5

Émissions - Ne pas avoir peur d'être bruyant

Bruit du système

Le bruit du ventilateur est toujours présent à 31,3 dB(A) sur un fond silencieux de 23,2 dB(A), ce qui rend automatiquement la NucBox K6 plus bruyante que la plupart des ordinateurs portables utilisant des CPU de la série U. Cependant, gardez à l'esprit que les utilisateurs s'assoient normalement plus loin des mini-PC que des ordinateurs portables et que les niveaux de bruit peuvent donc être moins perceptibles dans l'ensemble. Le système devient légèrement plus bruyant à 33,4 dB(A) en cas de streaming vidéo ou de navigation sur le web, mais les variations de régime sont heureusement régulières et sans pics soudains.

Les charges plus exigeantes, comme les jeux, induisent un bruit de ventilateur entre 44 et 48 dB(A), plus perceptible et presque aussi fort que celui de certains ordinateurs portables de jeu comme le MSI Stealth GS66. Il est intéressant de noter que la plage de bruit du ventilateur et son comportement correspondent presque à ce que nous avons observé sur le Geekom A7.

Profil de bruit du ventilateur (Blanc : Arrière-plan, Rouge : Système au repos, Bleu : 3DMark 06, Orange : Witcher 3 vert : Prime95+FurMark stress)

Degré de la nuisance sonore

Au repos		31.3 / 31.3 / 33.4 dB(A)
Fortement sollicité		47.5 / 47.7 dB(A)

	30 dB silencieux 40 dB(A) audible 50 dB(A) bruyant
min: , med: , max: Earthworks M23R, Arta (à 15 cm de distance) bruit ambiant: 23.2 dB(A)

Température

L'air frais pénètre par le bas et le long du périmètre du bord supérieur, tandis que l'air vicié s'échappe par l'arrière. Cette conception permet à l'appareil de s'adapter à des positions horizontales ou verticales sans entraver la circulation de l'air.

L'adaptateur secteur peut atteindre plus de 42°C lorsque vous utilisez des charges exigeantes pendant de longues périodes.

Gestion de l'énergie

Consommation électrique

Le système consomme environ 73 W pendant les jeux, ce qui est relativement élevé pour un mini-PC avec seulement des graphiques intégrés. Le NUC 13 Pro, plus lent, par exemple, ne demande que 45 W dans des conditions similaires. La consommation élevée est conforme à nos conclusions ci-dessus concernant l'enveloppe de puissance plus élevée de la NucBox K6.

Nous avons pu enregistrer une consommation maximale d'environ 88 W à partir de l'adaptateur secteur de taille moyenne (~14,9 x 6,3 x 3 cm) de 130 W lorsque le CPU est utilisé à 100 %. Le surplus d'énergie peut être utilisé pour des périphériques USB-C externes tels que des disques SSD.

(Note de la rédaction: cette section sera mise à jour lorsque les réparations de notre multimètre Metrahit Energy seront terminées. Nous vous prions de nous excuser pour la gêne occasionnée)

Consommation énergétique

Éteint/en veille	1.3 / 1.6 Watts
Au repos	6.7 / 7 / 7.6 Watts
Fortement sollicité	74.3 / 85.7 Watts


Légende: min: , med: , max: Metrahit Energy

	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe, , x,	Geekom A7 R9 7940HS, Radeon 780M, Acer N5000, , x,
Power Consumption		-15%	-13%	45%	-115%	16%
Idle Minimum *	6.7	7.1 -6%	7 -4%	4.4 34%	7.23 -8%	3.8 43%
Idle Average *	7	10.1 -44%	9.2 -31%	5 29%	10 -43%	4.8 31%
Idle Maximum *	7.6	18.6 -145%	11.8 -55%	5.3 30%	49 -545%	6.5 14%
Load Average *	74.3	45.3 39%	45 39%	29.8 60%	53 29%	71.9 3%
Witcher 3 ultra *	75	55.2 26%		28.8 62%
Load Maximum *	85.7	52.9 38%	97.2 -13%	40.4 53%	91 -6%	94.7 -11%

* ... Moindre est la valeur, meilleures sont les performances

Power Consumption Witcher 3 / Stresstest

GMK NucBox K6 R7 7840HS, Radeon 780M; Witcher 3 ultra: Ø75 (73.2-77.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; Witcher 3 ultra: Ø62.2 (60.2-65.2)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø83.9 (81.8-85.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 Prime95 28.10 and Furmark 1.25: Ø64.2 (62.8-72.8)

Power Consumption external Monitor

GMK NucBox K6 R7 7840HS, Radeon 780M; Prime95 V2810 Stress (external Monitor): Ø83.6 (58.9-86.5)

GMK NucBox K2 R7 7735HS, Radeon 680M; Prime95 V2810 Stress (external Monitor): Ø63 (62.1-72.5)

GMK NucBox K6 R7 7840HS, Radeon 780M; Cinebench R15 Multi (external Monitor): Ø79.3 (78.4-79.9)

GMK NucBox K2 R7 7735HS, Radeon 680M; Cinebench R15 Multi (external Monitor): Ø60.7 (57.3-67.4)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø81.2 (72.9-86.1)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø63.2 (61.9-71)

GMK NucBox K6 R7 7840HS, Radeon 780M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø75 (73.2-77.7)

GMK NucBox K2 R7 7735HS, Radeon 680M; 1920x1080 The Witcher 3 ultra (external Monitor): Ø62.2 (60.2-65.2)

GMK NucBox K6 R7 7840HS, Radeon 780M; Idle 1min (external Monitor): Ø7.54 (6.74-8.75)

Verdict - Puissant et relativement bon marché

La NucBox K6 est l'un des mini PC les plus convaincants que nous ayons testés jusqu'à présent chez GMK. Elle remplit plusieurs conditions essentielles, notamment un prix abordable de 500 $, de bonnes performances du CPU et de l'iGPU, une mémoire vive et un stockage évolutifs, ainsi qu'un petit format de type NUC. Ses performances sont particulièrement impressionnantes pour la catégorie, car des alternatives comme le Intel NUC 13 Pro ou le Geekom A7 sont plus lents, plus chers, voire les deux.

Les performances élevées et le prix attractif éclipsent la courte liste d'inconvénients et font de la GMK NucBox K6 une recommandation facile pour les HTPC et les jeux 1080p occasionnels.

Il n'y a que quelques inconvénients mineurs. L'unique port USB-C, par exemple, peut sembler limitatif si vous avez beaucoup d'accessoires ou de moniteurs à connecter. Nous aimerions également voir un entretien sans outil similaire à celui de l'IdeaCentre Mini de Lenovo IdeaCentre Mini ou de certains NUC d'Intel. Les problèmes de latence du DPC devraient également être résolus pour une expérience de lecture vidéo plus fluide. Enfin, un passage aux adaptateurs secteur USB-C rendrait le mini PC plus facile à transporter et augmenterait la compatibilité avec les adaptateurs USB-C existants.

Prix et disponibilité

GMKtec livre dès à présent la NucBox K6 à partir de 400 $ pour un kit nu ou 500 $ avec 16 Go de RAM, 1 To de SSD et Windows 11 Pro. Les codes de réduction 'K6-0-NBC' et 'K6-2T-NBC' peuvent s'appliquer à la caisse pour les SKUs barebone et 32 GB, respectivement.

Vous pouvez également consulter le site https://www.amazon.com/GMKtec-K6-Windows-2-5Gbps-Computer/dp/B0CQ4WBV8L la NucBox K6.

GMK NucBox K6 - 04/03/2024 v7 ^(old)
Allen Ngo

Châssis

84 / 98 → 85%

Connectivité

62 / 81 → 77%

Poids

83%

Performances en jeu

81%

Performances dans les applications

98%

Nuisance sonore

71%

Moyenne

80%

84%

Mini PC - Moyenne compensée

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Note	Date	Modèle	Poids	Épaisseur	Résolution
83.6 % v7 ^(old)	04/24	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
82.8 % v7 ^(old)		GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83.1 % v7 ^(old)	08/23	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
82.1 % v7 ^(old)	11/23	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
85.2 % v7 ^(old)	04/24	AcePC Wizbox AI Ultra 7 155H, Arc 8-Core	840 g	55.55 mm	x
82.6 % v7 ^(old)	03/24	Geekom A7 R9 7940HS, Radeon 780M	417 g	38 mm	x

	Horloge du CPU (GHz)	Horloge du GPU (MHz)	Température moyenne du CPU (°C)
Système au repos	--	--	37
Prime95 Stress	3.9	800	84
Prime95 + FurMark Stress	4.1	2000	76
Witcher 3 Stress	~0.4	2200 - 2700	71

Test du GMK NucBox K6 : mini-PC aussi puissant que les derniers PC portables Intel Core Ultra

Parfaitement adapté au Zen 4 d'AMD.

Comparaison avec les concurrents potentiels

Cas

Comparaison des tailles

Connectivité

Communication

Maintenance

Accessoires et garantie

Performances - La Zen 4 d'AMD reste très puissante

Conditions d'essai

Processeur

Cinebench R15 Multi Loop

Test de stress

Performance du système

Latence DPC

Dispositifs de stockage

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Performances du GPU - Suffisamment puissant pour la plupart des jeux

Witcher 3 FPS Chart

Émissions - Ne pas avoir peur d'être bruyant

Bruit du système

Température

Gestion de l'énergie

Consommation électrique

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Points positifs

Points négatifs

Verdict - Puissant et relativement bon marché

Prix et disponibilité

Articles liés

Transparency

Price comparison

3DMark 11 Performance		13455 points
3DMark Fire Strike Score		7566 points
3DMark Time Spy Score		3260 points
Aide

	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	AcePC Wizbox AI Arc 8-Core, Ultra 7 155H, Rayson RS512GSSD710 512 GB PCIe 4.0 NVMe	Geekom A7 Radeon 780M, R9 7940HS, Acer N5000
Noise		15%	8%	26%	19%	-1%
off / environment *	23.2	23.1 -0%	25.2 -9%	23.7 -2%	23.54 -1%	25.4 -9%
Idle Minimum *	31.3	25 20%	28.1 10%	23.9 24%	23.54 25%	33.3 -6%
Idle Average *	31.3	25.5 19%	28.2 10%	23.9 24%	24.9 20%	33.6 -7%
Idle Maximum *	33.4	25.5 24%	28.3 15%	23.9 28%	24.9 25%	33.7 -1%
Load Average *	47.5	39.9 16%	42 12%	28 41%	35.78 25%	43.3 9%
Witcher 3 ultra *	43.6	39.9 8%		27.6 37%		43.2 1%
Load Maximum *	47.7	39.9 16%	42.1 12%	32.8 31%	37.57 21%	43.3 9%
