Le GMK NucBox K1 face au Chuwi LarkBox : deux frères ennemis

Peu fiable.

Sur le papier, le mini PC GMK possède un meilleur processeur avec plus de RAM, plus de stockage, et un Wifi plus rapide que son équivalent Chuwi. Malheureusement, notre modèle de préproduction ne fonctionne pas toujours comme il se doit...

Allen Ngo, 👁 Allen Ngo (traduit par Prévots), Published 09/30/2020 🇺🇸 🇪🇸 ...

Desktop Chinese Tech

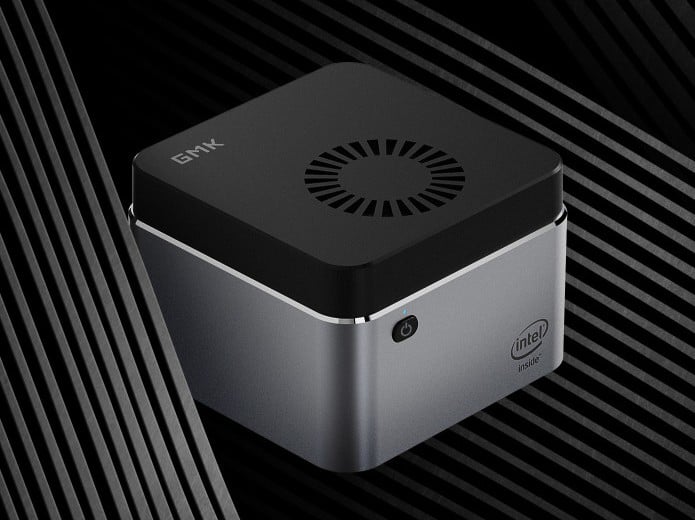

GMK NucBox K1

Processeur

Intel Celeron J4125 4 x 2 - 2.7 GHz, Gemini Lake Refresh

Carte graphique

Intel UHD Graphics 600, DDR4, 25.20.100.7262

Mémoire

8 Go

, 1200 MHz, monocanal

Disque dur

HIKVision C100 NGFF SSD 128GB, 128 Go

Carte son

Intel Gemini Lake SoC - High Definition Audio Controller

Connexions

2 USB 3.0 / 3.1 Gen1, 1 HDMI, Connectique audio: 3.5 mm headphones, Lecteur de cartes mémoires: micro SD

Réseau

Intel Dual Band Wireless-AC 7265 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/), Bluetooth 4.2

Taille

Hauteur x Largeur x Profondeur (en mm): 42 x 62 x 62

Système d'exploitation

Microsoft Windows 10 Pro 64 Bit

Fonctionnalités additionnelles

12 Mois Garantie, sans ventilateur

Poids

130 g, Alimentation: 125 g

Remarque : le fabricant peut utiliser des composants provenant de différents fournisseurs, notamment des panneaux d'affichage, des lecteurs ou des clés USB ayant des spécifications similaires.

voir toutes les spécifications

Note	Date	Modèle	Poids	Épaisseur	Taille	Résolution
v ^(old)	09/20	GMK NucBox K1 Celeron J4125, UHD Graphics 600	130 g	42 mm		x
v ^(old)		Zotac ZBox MI643 i5-10210U, UHD Graphics 620	550 g	28.5 mm		x
v ^(old)	08/20	Chuwi LarkBox 4K Mini PC Celeron J4115, UHD Graphics 600	129 g	43 mm		x
v ^(old)	02/20	Intel NUC10i5FNK i5-10210U, UHD Graphics 620	493 g	36 mm	0.00"	0x0
v ^(old)	12/19	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620	499 g	22 mm	0.00"	x
v ^(old)	09/18	Chuwi GBox CWI560 Celeron N4100, UHD Graphics 600	558 g	37.3 mm		x

Chuwi GBox CWI560 Lenovo ThinkCentre M90n-1 Nano Zotac ZBox MI643 Intel NUC10i5FNK GMK NucBox K1 Chuwi LarkBox 4K Mini PC DIN A5 ❌

SD Card Reader
average JPG Copy Test (av. of 3 runs)
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	66.9 MB/s +42%
GMK NucBox K1 (Toshiba Exceria Pro M501 UHS-)	47.1 MB/s
Zotac ZBox MI643 (Toshiba Exceria Pro M501 UHS-II)	34.2 MB/s -27%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	18.7 MB/s -60%
maximum AS SSD Seq Read Test (1GB)
Chuwi LarkBox 4K Mini PC (Toshiba Exceria Pro M501 UHS-II)	85.4 MB/s +1%
GMK NucBox K1 (Toshiba Exceria Pro M501 UHS-)	84.3 MB/s
Zotac ZBox MI643 (Toshiba Exceria Pro M501 UHS-II)	38 MB/s -55%
Chuwi GBox CWI560 (Toshiba Exceria Pro M501 UHS-II)	20.8 MB/s -75%

Networking
iperf3 transmit AX12
Beelink GTR35 II-G-16512D00W64PRO-1T Intel Wi-Fi 6 AX200	1165 (807^min - 1317^max) MBit/s +577%
Zotac ZBox MI643 Wireless AC-9461	345 (257^min - 397^max) MBit/s +101%
Chuwi LarkBox 4K Mini PC Wireless AC-9461	339 (302^min - 361^max) MBit/s +97%
GMK NucBox K1 Intel Dual Band Wireless-AC 7265	172 (126^min - 188^max) MBit/s
iperf3 receive AX12
Beelink GTR35 II-G-16512D00W64PRO-1T Intel Wi-Fi 6 AX200	1317 (1204^min - 1380^max) MBit/s +199%
GMK NucBox K1 Intel Dual Band Wireless-AC 7265	441 (403^min - 464^max) MBit/s
Zotac ZBox MI643 Wireless AC-9461	360 (180^min - 365^max) MBit/s -18%
Chuwi LarkBox 4K Mini PC Wireless AC-9461	352 (344^min - 357^max) MBit/s -20%

GMK NucBox K1; iperf3 receive AX12; iperf 3.1.3: Ø441 (403-464)

GMK NucBox K1; iperf3 transmit AX12; iperf 3.1.3: Ø172.3 (126-188)

GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB; CPU Multi 64Bit: Ø238 (199.13-242.53)

Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash; CPU Multi 64Bit: Ø253 (207.57-262.65)

Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB; CPU Multi 64Bit: Ø521 (518.69-524.21)

Chuwi MiniBook CWI526 UHD Graphics 600, Celeron N4100, 128 GB eMMC Flash; CPU Multi 64Bit: Ø247 (246.08-248.04)

Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 -mmt1 | 7z b 4
Geekbench 5.5: Single-Core | Multi-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R15 / CPU Multi 64Bit
Intel NUC10i5FNK Intel Core i5-10210U	790 Points +225%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	672 (494.25^min - 672.07^max) Points +177%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	524 Points +116%
Zotac ZBox MI643 Intel Core i5-10210U	524 (518.69^min - 524.21^max) Points +116%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	404 Points +66%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	333 (293^min - 333^max) Points +37%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	263 (207.57^min - 262.65^max) Points +8%
Chuwi MiniBook CWI526 Intel Celeron N4100	247 Points +2%
GMK NucBox K1 Intel Celeron J4125	243 (199.13^min - 242.53^max) Points
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	218 Points -10%
Chuwi GBox CWI560 Intel Celeron N4100	188 Points -23%
Chuwi Hi10 X Intel Celeron N4100	171 (168.8^min - 171.36^max) Points -30%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points -49%
LincPlus P1 Intel Celeron N4000	121 (118.17^min - 121.14^max) Points -50%
HP x2 210 G2 Intel Atom x5-Z8350	97 Points -60%
Chuwi HeroBook 14 Intel Atom x5-E8000	94 Points -61%

Cinebench R15 / CPU Single 64Bit
Zotac ZBox MI643 Intel Core i5-10210U	173 Points +130%
Intel NUC10i5FNK Intel Core i5-10210U	168 Points +123%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	157 Points +108%
Lenovo ThinkCentre M90n-1 Nano Intel Core i5-8265U	148 Points +97%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	146 Points +94%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	141 Points +87%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	91 Points +21%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel Core m3-6Y30	90 Points +20%
GMK NucBox K1 Intel Celeron J4125	75.3 Points
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	71.1 Points -6%
LincPlus P1 Intel Celeron N4000	70.9 Points -6%
Chuwi Hi10 X Intel Celeron N4100	68.8 Points -9%
Chuwi GBox CWI560 Intel Celeron N4100	68 Points -10%
Chuwi MiniBook CWI526 Intel Celeron N4100	62 Points -18%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points -46%
HP x2 210 G2 Intel Atom x5-Z8350	28 Points -63%
Chuwi HeroBook 14 Intel Atom x5-E8000	27 Points -64%

Cinebench R20 / CPU (Multi Core)
Intel NUC10i5FNK Intel Core i5-10210U	1820 Points +499%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	1583 Points +421%
Zotac ZBox MI643 Intel Core i5-10210U	1191 Points +292%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	902 Points +197%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	590 Points +94%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	587 Points +93%
Chuwi Hi10 X Intel Celeron N4100	378 Points +24%
GMK NucBox K1 Intel Celeron J4125	304 Points
LincPlus P1 Intel Celeron N4000	273 Points -10%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points -11%

Cinebench R20 / CPU (Single Core)
Intel NUC10i5FNK Intel Core i5-10210U	428 Points +166%
Zotac ZBox MI643 Intel Core i5-10210U	413 Points +157%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	348 Points +116%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	347 Points +116%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	338 Points +110%
GMK NucBox K1 Intel Celeron J4125	161 Points
LincPlus P1 Intel Celeron N4000	160 Points -1%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	156 Points -3%
Chuwi Hi10 X Intel Celeron N4100	153 Points -5%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points -42%

Blender / v2.79 BMW27 CPU
Chuwi HeroBook 14 Intel Atom x5-E8000	7714 Seconds * -223%
LincPlus P1 Intel Celeron N4000	4736 Seconds * -98%
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * -91%
Chuwi GBox CWI560 Intel Celeron N4100	3527 Seconds * -48%
Chuwi Hi10 X Intel Celeron N4100	3436 Seconds * -44%
GMK NucBox K1 Intel Celeron J4125	2391 Seconds *
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2380 Seconds * -0%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1814 Seconds * +24%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	1123 Seconds * +53%
Zotac ZBox MI643 Intel Core i5-10210U	884 Seconds * +63%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	670 Seconds * +72%
Intel NUC10i5FNK Intel Core i5-10210U	585 Seconds * +76%

7-Zip 18.03 / 7z b 4 -mmt1
Zotac ZBox MI643 Intel Core i5-10210U	4467 MIPS +89%
Intel NUC10i5FNK Intel Core i5-10210U	4253 MIPS +80%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	4057 MIPS +72%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3543 MIPS +50%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	3438 MIPS +46%
Chuwi GBox CWI560 Intel Celeron N4100	2459 MIPS +4%
GMK NucBox K1 Intel Celeron J4125	2361 MIPS
LincPlus P1 Intel Celeron N4000	2298 MIPS -3%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	2215 MIPS -6%
Chuwi Hi10 X Intel Celeron N4100	2150 MIPS -9%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS -38%
Chuwi HeroBook 14 Intel Atom x5-E8000	1286 MIPS -46%

7-Zip 18.03 / 7z b 4
Intel NUC10i5FNK Intel Core i5-10210U	21679 MIPS +189%
Zotac ZBox MI643 Intel Core i5-10210U	16799 MIPS +124%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	16683 MIPS +123%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	11135 MIPS +49%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	8098 MIPS +8%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	7921 MIPS +6%
GMK NucBox K1 Intel Celeron J4125	7494 MIPS
Chuwi GBox CWI560 Intel Celeron N4100	6608 MIPS -12%
Chuwi Hi10 X Intel Celeron N4100	5620 MIPS -25%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS -39%
Chuwi HeroBook 14 Intel Atom x5-E8000	4432 MIPS -41%
LincPlus P1 Intel Celeron N4000	4114 MIPS -45%

Geekbench 5.5 / Single-Core
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	1161 Points +167%
Zotac ZBox MI643 Intel Core i5-10210U	1133 Points +160%
Intel NUC10i5FNK Intel Core i5-10210U	1099 Points +153%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	1096 Points +152%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	903 Points +108%
LincPlus P1 Intel Celeron N4000	436 Points 0%
GMK NucBox K1 Intel Celeron J4125	435 Points
Chuwi Hi10 X Intel Celeron N4100	409 Points -6%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	388 Points -11%

Geekbench 5.5 / Multi-Core
Zotac ZBox MI643 Intel Core i5-10210U	3975 Points +185%
Intel NUC10i5FNK Intel Core i5-10210U	3939 Points +183%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	3203 Points +130%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	2434 Points +75%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2028 Points +45%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1410 Points +1%
GMK NucBox K1 Intel Celeron J4125	1394 Points
Chuwi Hi10 X Intel Celeron N4100	1082 Points -22%
LincPlus P1 Intel Celeron N4000	797 Points -43%

HWBOT x265 Benchmark v2.2 / 4k Preset
Intel NUC10i5FNK Intel Core i5-10210U	6.28 fps +330%
Zotac ZBox MI643 Intel Core i5-10210U	4.23 fps +190%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	4.1 fps +181%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	3.59 fps +146%
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	2.23 fps +53%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	1.49 fps +2%
GMK NucBox K1 Intel Celeron J4125	1.46 fps
Chuwi Hi10 X Intel Celeron N4100	1.03 fps -29%
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps -33%
Chuwi GBox CWI560 Intel Celeron N4100	0.974 fps -33%
LincPlus P1 Intel Celeron N4000	0.79 fps -46%

LibreOffice / 20 Documents To PDF
Chuwi Hi10 X Intel Celeron N4100	161 s * -30%
LincPlus P1 Intel Celeron N4000	156 s * -26%
Chuwi LarkBox 4K Mini PC Intel Celeron J4115	150 s * -21%
GMK NucBox K1 Intel Celeron J4125	124 s *
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	97.8 s * +21%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	74.9 s * +40%
Zotac ZBox MI643 Intel Core i5-10210U	57 s * +54%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	56.8 s * +54%

R Benchmark 2.5 / Overall mean
Chuwi Hi10 X Intel Celeron N4100	1.75 sec * -11%
LincPlus P1 Intel Celeron N4000	1.652 sec * -5%
GMK NucBox K1 Intel Celeron J4125	1.577 sec *
Apple MacBook Air 2020 i3 Intel Core i3-1000NG4	0.918 sec * +42%
Lenovo IdeaPad 3 14IIL05 Intel Core i3-1005G1	0.755 sec * +52%
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Ryzen 5 3550H	0.737 sec * +53%
Intel NUC10i5FNK Intel Core i5-10210U	0.72 sec * +54%
Zotac ZBox MI643 Intel Core i5-10210U	0.658 sec * +58%

* ... Moindre est la valeur, meilleures sont les performances

Cinebench R10 Rendering Single 32Bit

2070

Cinebench R10 Shading 32Bit

3685

Cinebench R10 Rendering Multiple CPUs 32Bit

7128

Cinebench R11.5 CPU Multi 64Bit

3.06 Points

Cinebench R11.5 OpenGL 64Bit

10.84 fps

Cinebench R11.5 CPU Single 64Bit

0.84 Points

Cinebench R15 CPU Single 64Bit

75.3 Points

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 OpenGL 64Bit

13.3 fps

Cinebench R15 CPU Multi 64Bit

243 Points

Cinebench R20 CPU (Single Core)

161 Points

Cinebench R20 CPU (Multi Core)

304 Points

Aide

... en comparaison

PCMark 10 | PCMark 8

PCMark 10
Score
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	4244 Points +132%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4019 Points +119%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	3876 Points +112%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	1831 Points
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1803 Points -2%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	1658 Points -9%
Essentials
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	9510 Points +94%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	8551 Points +75%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	8235 Points +68%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	4900 Points
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	4837 Points -1%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	4418 Points -10%
Productivity
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	6975 Points +137%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	6494 Points +120%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	6337 Points +115%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2969 Points +1%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	2948 Points
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	2883 Points -2%
Digital Content Creation
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3296 Points +185%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	3128 Points +171%
Lenovo ThinkCentre M90n-1 Nano UHD Graphics 620, i5-8265U, Samsung SSD PM981 MZVLB512HAJQ	2917 Points +153%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	1155 Points
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	1110 Points -4%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	972 Points -16%

PCMark 8
Home Score Accelerated v2
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	3567 Points +85%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	3526 Points +83%
Chuwi GBox CWI560 UHD Graphics 600, Celeron N4100, SanDisk DA4064	2062 Points +7%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	2036 Points +6%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	1928 Points
Work Score Accelerated v2
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	4816 Points +55%
Intel NUC10i5FNK UHD Graphics 620, i5-10210U, Kingston RBUSNS8154P3256GJ1	4286 Points +38%
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	3191 Points +3%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	3099 Points

PCMark 8 Home Score Accelerated v2		1928 points
PCMark 8 Work Score Accelerated v2		3099 points
PCMark 10 Score		1831 points
Aide

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Chuwi Hi10 X UHD Graphics 600, Celeron N4100, SanDisk DF4128	1981 μs * -15%
GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	1717 μs *
Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	766 μs * +55%
Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	745 μs * +57%
Beelink GTR35 II-G-16512D00W64PRO-1T Vega 8, R5 3550H, Silicon Motion AZW 512G NV428	692 μs * +60%
Lenovo IdeaPad 3 14IIL05 UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1, WDC PC SN520 SDAPMUW-256G	674 μs * +61%

* ... Moindre est la valeur, meilleures sont les performances

	GMK NucBox K1 HIKVision C100 NGFF SSD 128GB	Zotac ZBox MI643 Lexar NM610 1TB	Chuwi LarkBox 4K Mini PC 128 GB eMMC Flash	Intel NUC10i5FNK Kingston RBUSNS8154P3256GJ1	Lenovo ThinkCentre M90n-1 Nano Samsung SSD PM981 MZVLB512HAJQ	Chuwi GBox CWI560 SanDisk DA4064
AS SSD		802%	2%	533%	623%
Seq Read	432.5	1511 249%	286 -34%	1318 205%	1668 286%
Seq Write	404	1558 286%	106.9 -74%	616 52%	1150 185%
4K Read	9.18	43.77 377%	15.22 66%	26.44 188%	48.46 428%
4K Write	52.8	119.5 126%	21.59 -59%	61.3 16%	116.5 121%
4K-64 Read	73.4	839 1043%	16.8 -77%	650 786%	726 889%
4K-64 Write	41.03	909 2115%	20.03 -51%	642 1465%	1074 2518%
Access Time Read *	0.251	0.032 87%	0.254 -1%	0.11 56%	0.039 84%
Access Time Write *	0.308	0.242 21%	0.406 -32%	0.07 77%	0.032 90%
Score Read	126	1034 721%	61 -52%	808 541%	942 648%
Score Write	134	1185 784%	52 -61%	765 471%	1305 874%
Score Total	326	2760 747%	142 -56%	1955 500%	2716 733%
Copy ISO MB/s	54.9	1373 2401%	107.3 95%	576 949%
Copy Program MB/s	52.3	280.4 436%	92.6 77%	328.9 529%
Copy Game MB/s	27.38	531 1839%	104.7 282%	471.2 1621%
CrystalDiskMark 5.2 / 6		320%	-57%	171%	317%	-36%
Write 4K	77.1	214.1 178%	26.02 -66%	58.4 -24%	130 69%	38 -51%
Read 4K	20.12	62.1 209%	16.33 -19%	30.24 50%	45.61 127%	23.84 18%
Write Seq	212.9	1664 682%	109.5 -49%	773 263%		226.7 6%
Read Seq	424	1797 324%	334.3 -21%	712 68%		271.8 -36%
Write 4K Q32T1	123.5	421.8 242%	28.76 -77%	448.5 263%	365.3 196%	44.74 -64%
Read 4K Q32T1	70.9	512 622%	17.41 -75%	391.4 452%	350.2 394%	53.2 -25%
Write Seq Q32T1	445.9	564 26%	59 -87%	914 105%	2986 570%	129.4 -71%
Read Seq Q32T1	550	2073 277%	218.8 -60%	1583 188%	3565 548%	189.4 -66%
Write 4K Q8T8				402.3	368.7
Read 4K Q8T8				680	790
Moyenne finale (programmes/paramètres)		561% / 627%	-28% / -20%	352% / 401%	470% / 515%	-36% / -36%

* ... Moindre est la valeur, meilleures sont les performances

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

HIKVision C100 NGFF SSD 128GB

CDM 5/6 Read Seq Q32T1: 550 MB/s

CDM 5/6 Write Seq Q32T1: 445.9 MB/s

CDM 5/6 Read 4K Q32T1: 70.9 MB/s

CDM 5/6 Write 4K Q32T1: 123.5 MB/s

CDM 5 Read Seq: 424 MB/s

CDM 5 Write Seq: 212.9 MB/s

CDM 5/6 Read 4K: 20.12 MB/s

CDM 5/6 Write 4K: 77.1 MB/s

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

No graph data

3DMark | 3DMark 11

3DMark
1280x720 Cloud Gate Standard Graphics
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	18901 Points +462%
Lenovo IdeaPad 3 14IIL05 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	10336 Points +207%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	10077 Points +199%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, i5-8265U	9590 Points +185%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	9113 Points +171%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	6078 Points +81%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	3997 Points +19%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	3882 Points +15%
Chuwi MiniBook CWI526 Intel UHD Graphics 600, Celeron N4100	3746 Points +11%
GMK NucBox K1 Intel UHD Graphics 600, Celeron J4125	3366 Points
Moyenne Intel UHD Graphics 600 (2346 - 4958, n=20)	3365 Points 0%
Chuwi Hi10 X Intel UHD Graphics 600, Celeron N4100	2714 Points -19%
HP x2 210 G2 Intel HD Graphics 400 (Braswell), Z8350	1841 Points -45%
Chuwi HeroBook 14 Intel HD Graphics 400 (Braswell), E8000	1594 Points -53%
1920x1080 Fire Strike Graphics
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	2737 Points +532%
Lenovo IdeaPad 3 14IIL05 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	1359 Points +214%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1283 Points +196%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1202 Points +178%
Lenovo ThinkCentre M90n-1 Nano Intel UHD Graphics 620, i5-8265U	1183 Points +173%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	922 Points +113%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	735 Points +70%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	453 Points +5%
GMK NucBox K1 Intel UHD Graphics 600, Celeron J4125	433 Points
Moyenne Intel UHD Graphics 600 (307 - 637, n=21)	421 Points -3%
LincPlus P1 Intel UHD Graphics 600, Celeron N4000	386 Points -11%
Chuwi Hi10 X Intel UHD Graphics 600, Celeron N4100	357 Points -18%
HP x2 210 G2 Intel HD Graphics 400 (Braswell), Z8350	234 Points -46%
2560x1440 Time Spy Graphics
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	403 Points +236%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	396 Points +230%
Lenovo IdeaPad 3 14IIL05 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	395 Points +229%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	142 Points +18%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	122 Points +2%
GMK NucBox K1 Intel UHD Graphics 600, Celeron J4125	120 Points
Moyenne Intel UHD Graphics 600 (85 - 124, n=12)	107.5 Points -10%
Chuwi Hi10 X Intel UHD Graphics 600, Celeron N4100	94 Points -22%

3DMark 11
1280x720 Performance GPU
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	4040 Points +586%
Lenovo IdeaPad 3 14IIL05 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	1963 Points +233%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1941 Points +230%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1858 Points +215%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1853 Points +215%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	1186 Points +101%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	765 Points +30%
Chuwi MiniBook CWI526 Intel UHD Graphics 600, Celeron N4100	638 Points +8%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	605 Points +3%
GMK NucBox K1 Intel UHD Graphics 600, Celeron J4125	589 Points
Moyenne Intel UHD Graphics 600 (410 - 854, n=27)	558 Points -5%
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	484 Points -18%
Chuwi Hi10 X Intel UHD Graphics 600, Celeron N4100	477 Points -19%
HP x2 210 G2 Intel HD Graphics 400 (Braswell), Z8350	349 Points -41%
Chuwi HeroBook 14 Intel HD Graphics 400 (Braswell), E8000	247 Points -58%
1280x720 Performance Combined
Beelink GTR35 II-G-16512D00W64PRO-1T AMD Radeon RX Vega 8 (Ryzen 2000/3000), R5 3550H	2997 Points +449%
Lenovo IdeaPad 3 14IIL05 Intel UHD Graphics G1 (Ice Lake 32 EU), i3-1005G1	1992 Points +265%
Zotac ZBox MI643 Intel UHD Graphics 620, i5-10210U	1829 Points +235%
Intel NUC10i5FNK Intel UHD Graphics 620, i5-10210U	1665 Points +205%
Apple MacBook Air 2020 i3 Intel Iris Plus Graphics G4 (Ice Lake 48 EU), i3-1000NG4	1352 Points +148%
Apple MacBook 12 (Early 2016) 1.1 GHz Intel HD Graphics 515, 6Y30	1014 Points +86%
Chuwi MiniBook CWI526 Intel UHD Graphics 600, Celeron N4100	791 Points +45%
Chuwi LapBook Plus Intel HD Graphics 505, x7-E3950	754 Points +38%
Chuwi LarkBox 4K Mini PC Intel UHD Graphics 600, Celeron J4115	612 Points +12%
Moyenne Intel UHD Graphics 600 (362 - 983, n=27)	552 Points +1%
GMK NucBox K1 Intel UHD Graphics 600, Celeron J4125	546 Points
Chuwi GBox CWI560 Intel UHD Graphics 600, Celeron N4100	445 Points -18%
HP x2 210 G2 Intel HD Graphics 400 (Braswell), Z8350	392 Points -28%
Chuwi Hi10 X Intel UHD Graphics 600, Celeron N4100	362 Points -34%
Chuwi HeroBook 14 Intel HD Graphics 400 (Braswell), E8000	319 Points -42%

3DMark | 3DMark 11

3DMark 06 Standard Score		3613 points
3DMark 11 Performance		661 points
3DMark Cloud Gate Standard Score		3120 points
3DMark Fire Strike Score		402 points
3DMark Time Spy Score		138 points
Aide

... en comparaison

	Bas	Moyen	Élevé	Ultra
Dota 2 Reborn (2015)	32.8	16	6.8	6.1
X-Plane 11.11 (2018)	6.89	4.87	4.31

	GMK NucBox K1 UHD Graphics 600, Celeron J4125, HIKVision C100 NGFF SSD 128GB	Zotac ZBox MI643 UHD Graphics 620, i5-10210U, Lexar NM610 1TB	Chuwi LarkBox 4K Mini PC UHD Graphics 600, Celeron J4115, 128 GB eMMC Flash	Intel NUC8i7BE Iris Plus Graphics 655, i7-8559U	Intel Skull Canyon NUC6i7KYK Iris Pro Graphics 580, 6770HQ, Samsung SSD 850 EVO m.2 120GB
Noise		10%	-4%	1%	-6%
off / environment *	27.8	26.1 6%	26 6%	28.7 -3%	29.5 -6%
Idle Minimum *	27.8	27.5 1%	26 6%	28.7 -3%	31.6 -14%
Idle Average *	27.8	27.5 1%	26 6%	29.3 -5%	32.2 -16%
Idle Maximum *	27.8	27.5 1%	43.3 -56%	31.8 -14%	32.3 -16%
Load Average *	46.8	28.9 38%	43.3 7%	39 17%	43 8%
Load Maximum *	46.8	42 10%	43.5 7%	41.4 12%	43.2 8%
Witcher 3 ultra *				39

* ... Moindre est la valeur, meilleures sont les performances

Degré de la nuisance sonore

Au repos		27.8 / 27.8 / 27.8 dB(A)
Fortement sollicité		46.8 / 46.8 dB(A)

	30 dB silencieux 40 dB(A) audible 50 dB(A) bruyant
min: , med: , max: Earthworks M23R, Arta (à 15 cm de distance) bruit ambiant: 27.8 dB(A)

Consommation énergétique

Éteint/en veille	0.82 / 0.9 Watts
Au repos	3.4 / 3.8 / 3.9 Watts
Fortement sollicité	12.5 / 22.7 Watts


Légende: min: , med: , max: Metrahit Energy

	GMK NucBox K1 Celeron J4125, UHD Graphics 600, HIKVision C100 NGFF SSD 128GB, , x,	Zotac ZBox MI643 i5-10210U, UHD Graphics 620, Lexar NM610 1TB, , x,	Chuwi LarkBox 4K Mini PC Celeron J4115, UHD Graphics 600, 128 GB eMMC Flash, , x,	Lenovo ThinkCentre M90n-1 Nano i5-8265U, UHD Graphics 620, Samsung SSD PM981 MZVLB512HAJQ, , x, 0"	Chuwi GBox CWI560 Celeron N4100, UHD Graphics 600, SanDisk DA4064, , x,
Power Consumption		-150%	18%	-62%	41%
Idle Minimum *	3.4	7.5 -121%	2.2 35%	4.4 -29%	1.9 44%
Idle Average *	3.8	9.2 -142%	2.6 32%	4.4 -16%	2 47%
Idle Maximum *	3.9	9.6 -146%	3 23%	4.7 -21%	2.9 26%
Load Average *	12.5	34.4 -175%	13.1 -5%	27.7 -122%	8.6 31%
Load Maximum *	22.7	60.6 -167%	21.9 4%	49.9 -120%	9.5 58%

* ... Moindre est la valeur, meilleures sont les performances

Points positifs

+ HDMI, micro SD, 2 ports USB A

+ stockage et RAM vu la compacité

+ SSD M.2 2242 amovible

+ châssis réussi

+ connectivité Wifi 5 2x2

+ prix

Points négatifs

- pertes d'images en 4K60

- stabilité des performances et du WLAN

- USB C pour l'alimentation uniquement

- performances du processeur

- variations du ventilateur

En test : le GMK NucBox K1. Modèle de test fourni par GMK.

En nous basant sur le temps passé avec le modèle de préproduction, on peut dire que le NucBox K1 n'est pas prêt pour un lancement. Le Wifi saute constamment, le ventilateur varie fréquemment, le lecteur micro SD ne reconnait pas toujours la carte, les appareils USB se connectent et se déconnectent de façon inexplicable, et les performances sont instables, même par rapport au Chuwi LarkBox concurrent. Le prix, le design et le concept d'ensemble sont séduisants, mais il vaut mieux payer un peu plus cher pour un mini PC plus gros et plus fiable, ou même pour un Intel NUC de dernière génération.

Nous espérons que GMK corrige tous ces problèmes sur la version finale. Si vous pensez toujours soutenir le projet, alors nous vous recommandons de tester votre machine et de vous assurer que tous les ports et connexions sans-fil fonctionnent comme voulu.

L’intégralité de cette critique est disponible en anglais en suivant ce lien.
